Specifications
FEATURES
Tuner
Memory Pre-sets (FM: 24 / MW:
6 / LW: 6)
Memory: Auto Memory
Seek Mode: Local / DX
Selection
RDS
RDS Functions: PI, PS, AF, TA, TP,
PTY, NEWS, RADIO TEXT
DAB Tuner
DAB+ Tuner Built-in
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Service Pre-set: 18 Pre-set Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
Antenna Power Supply
Selection
BLUETOOTH®
Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile)
Compatible
Streaming Music Control: AVRCP (Audio / Video Remote
Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music
Streaming
Phone Book: Phone Book Synchronization
Speed Dial: 4 Pre-set Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be
stored for one name
Device Name Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls /
Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and
Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 24 Languages
Firmware Updatable
Made for iPod® / iPhone®
Compatibility for iPod/iPhone:
compatible with all models except 1st and 2nd generation iPhone
Connection: KCU-461iV / KCU-471i Required
(Sold separately)
Music & Video Playback Compatible with KCU-461iV only
Available Selections: Playlist / Artist / Album /Song /
Podcast / Genre / Composer / Audiobook
Alphabet Search
Artwork Display
Direct Up / Down: Playlist / Artist / Album / Genre /
Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging
Connectivity

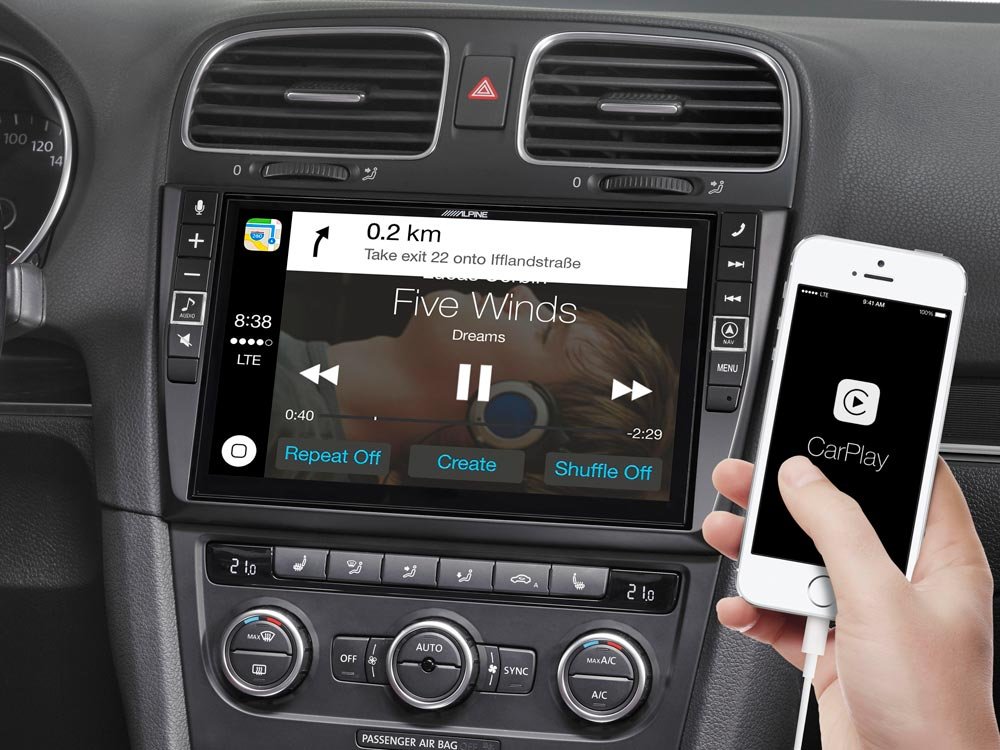

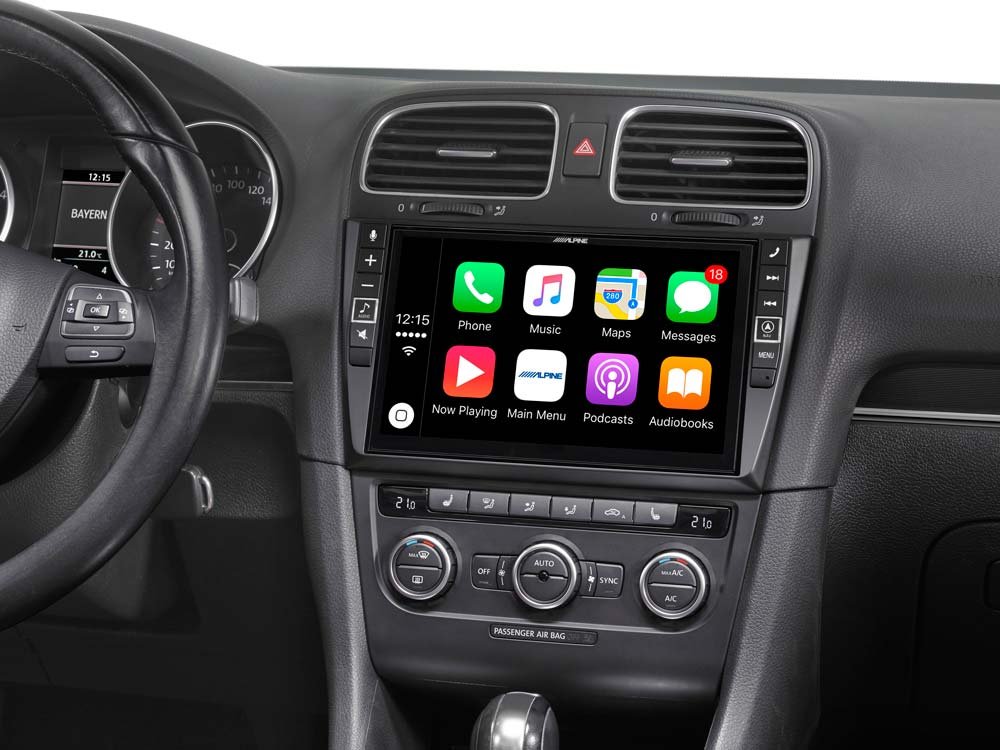

Works with Apple CarPlay (requires
CarPlay enabled iPhone)
Works with Android Auto (Requires
Android Auto enabled smartphone)
USB Media Connection
USB Connection: USB
Extension Cable Included
Music Playback: FLAC/MP3/WMA/AAC
compatible
Video Playback: MP4 compatible
File / Folder Name Search
Tag Info Search
Folder Up / Down
M.I.X. Random Play
Repeat
Sound Tuning
Bass Engine SQ
Bass Engine™ Pro
Subwoofer Level Adjustment
Subwoofer Phase Select
2 V High Voltage PreOut
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance,
Hip Hop, Easy Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel Digital Time Correction
Digital Crossover Setting
Customized Sound Setting by Car Type
MediaXpander HD
Application Volume Level Setting
Sound Setting Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt App
ready
General
Power Output: 4 x 50 W High
Power Amplifier
Advanced Power IC
Display: 9?? Capacitive WVGA High Resolution Display
White LED Backlighting System
Control Type: Touch, Drag, Flick
My Favourites Function
Automatic Setting Change for 2 Users
High Grade Audiophile Design
3 PreOuts (2 V, Front / Rear / Subwoofer) KTX-PRE1 Required
(Sold separately)
AUX-In: 1 A/V AUX Input (3.5mm micro jack)
Steering Wheel Remote Control Function
OEM Sub-display Function
Remote Control Ready
Navigation Guidance Mix
Camera Connection & Built-in Controls for Multi-View
Cameras / compatible with original camera
Camera Guide Line Adjustment
Rear-view Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast Adjustment
Menu Language: 24 Languages (for AV / Bluetooth), 29
Languages (Navigation Menu and Voice Guidance)
Clock
Auto Dimmer
Anti-theft security code
Firmware Updatable
Original Golf 6 hands-free Microphone Connection
Power Antenna Lead
Remote Turn-On
HDMI Input (Alpine Special HDMI connector required)
Engine Start-Stop unaffected
CAN Connection Interface Included
Ready for optional DVD
Player DVE-5300
Installation
Includes installation brackets,
wiring harness and CAN bus interface for complete installation.
SPECIFICATIONS
Screen
Screen Size: 9 inch
Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x
480)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC,
PAL
Max Power Output Ratings
Max Power Output: 4 x 50 W
FM Tuner
Tuning Range: 87.5 - 108.0
MHz
Mono Usable Sensitivity: 8.1 dBf (0.7
µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 - 1,602
kHz
Usable Sensitivity (IEC
Standard): 25.1 µV / 28 dBf
LW Tuner
Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC
Standard): 31.6 µV / 30 dBf
USB
USB Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP
Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ??.m4a?? file
Flac Decoding
USB Video playback (AVI/MP4/MKV file with H.264 Video and
MP3/AAC Audio)
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response
may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic Range(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at
1kHz): 85 dB
GPS / Glonass
GPS / Glonass compatible
navigation antenna included
BLUETOOTH®
BLUETOOTH® Version:
Bluetooth V3.0+EDR
Output Power: +4 dBm Max. (Power
class 2)
HFP: HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
Sound Tuning
Subwoofer Level Adjustment:
0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100
/ 125 / 160 / 200 Hz
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 /
125 / 160 / 200 Hz
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9ms (0.1ms step)
Dual HD EQ Front + Rear
Parametric Equalizer (Band 1): 20 - 100 Hz
Parametric Equalizer (Band 2): 63 - 315 Hz
Parametric Equalizer (Band 3): 125 - 500 Hz
Parametric Equalizer (Band 4): 250 - 1k Hz
Parametric Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric Equalizer (Gain): -14 to +14
Application Volume Level
Setting: -14 to +14
HDMI Section
Input Format 720p/480p/VGA
Output Format 480p
General
Power Requirement: 14.4 V.
DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2 V /
10k ohms
Maximum Mounting Angle: 30°
Dimensions

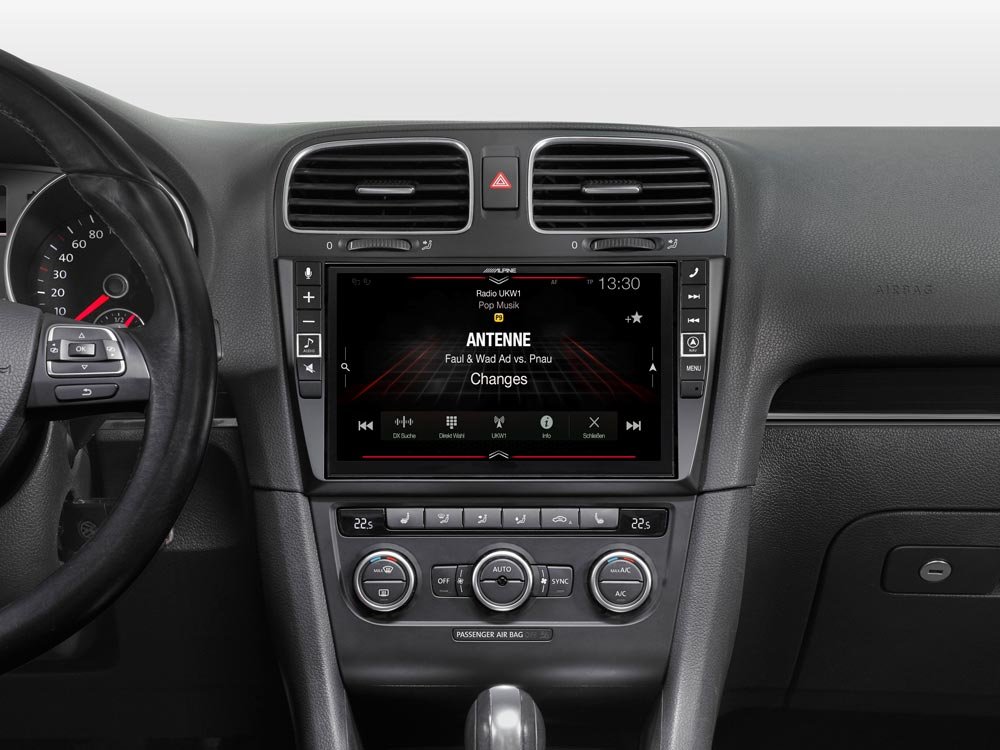

i902D-G6 / X902D-G6: Fits for
Volkswagen Golf 6
Chassis Size (W x H x D)
mm: 178 x 50 x 164 mm
Compatible Cars
Volkswagen
Golf VI (5K) (Limousine)
2008-2012
Volkswagen
Golf VI (5K) (Variant)
2009-2013
Volkswagen
Golf VI (5K) (Cabriolet)
2011-2016
Not compatible with Golf Plus and Cross Golf.
Small modification to original plastic
radio cage is necessary.
