Περιγραφή
Panorama View displays a wide view in front of the car. Use this when you want to view a wider than normal area before the car.
Top view is convenient for precise parking. There's also a picture-in-picture function that shows the regular front view in a small screen.
Corner-view splits the screen so you have a clearer view of both left and right in front of the car. There's also a picture-in-picture function that shows the regular front view in a small screen.
Provides better visibility when coming out of ‘blind’ alleys or around obstructed corners. Especially useful for reducing blind spots with SUVs and minivans.
Lets you see right in front of your car to help in parallel parking and other situations.
KCX-C200B Dual Multi-Camera Interface
Enables connection of two Multi-View cameras to screens with RCA input, sold seperatly
Specifications
FEATURES
General
Frontview
Video Signal (NTSC)
Output
Multi View Angle Selection: Panorama view, Corner view, Ground view
Camera
Normal Image
Output
Colour CMOS
Image Sensor
Automatic
Exposure Adjustment
Automatic
White Balance Adjustment
Internal
Synchronization
SPECIFICATIONS
Dimensions

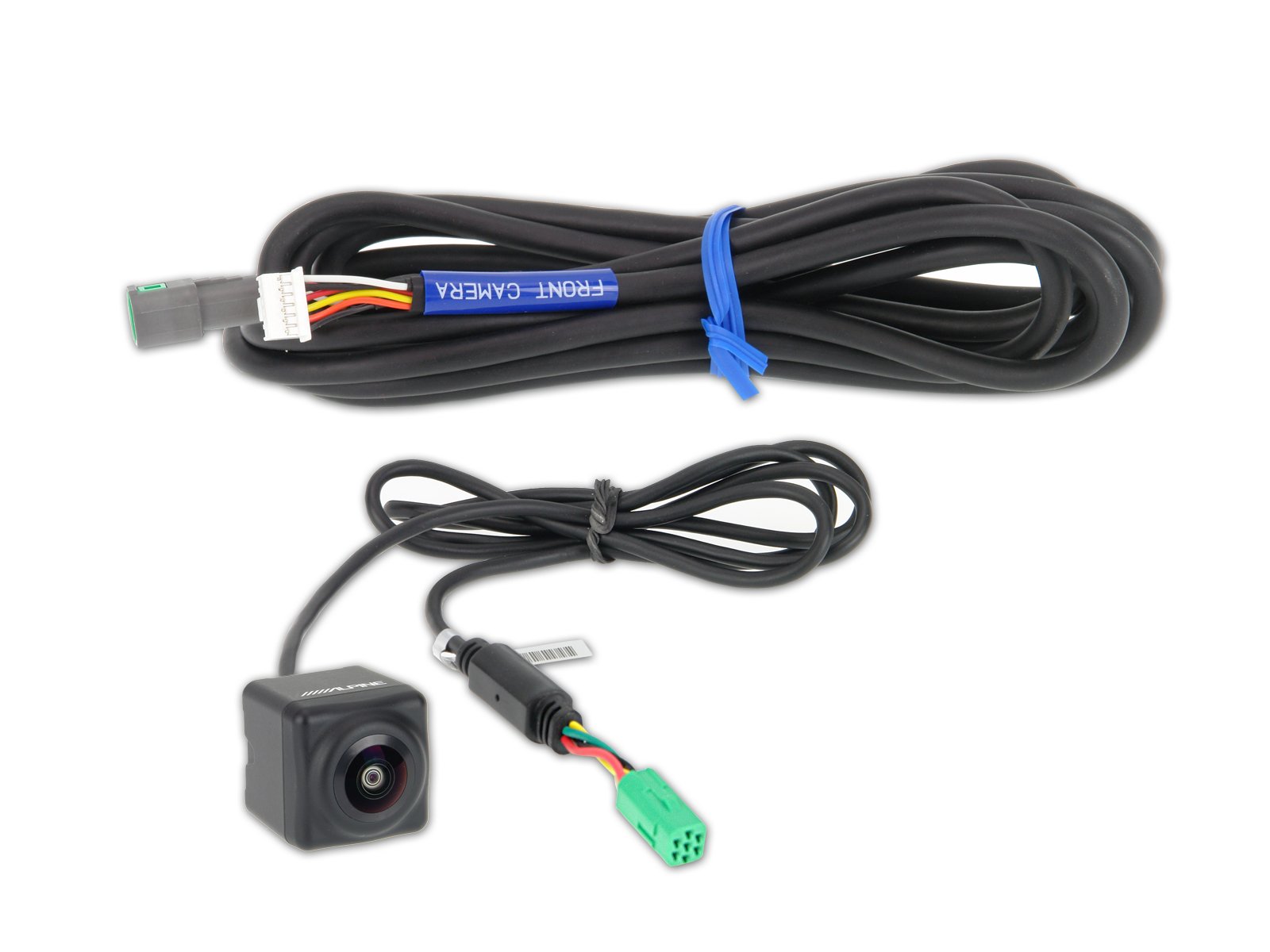

Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear)
Camera Cable
Length: 1m
Camera
Extension Cable Length: 3m
General
Power Requirement: 6.0V DC (5.4 to 9.0VDC allowable)
Ground Type:
Negative Ground
Max. Power Consumption: 0.8W (6.0V)
Camera
Output Image: Normal image, CVBS (NTSC Video signal)
Image Output Impedance: 75 Ohms (1Vp-p)
Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9
Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately
0.93 Mega pixels
Lens: Focal
Length: f=0.9mm
Lens:
Brightness: F=1:1.8
Angle of Field: Horizontal = 180° , Vertical = 142°
S/N Ratio: 41 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating
Temperature: -30°C - +70°C
Illumination Range: Approximatly 1.5Lx to 100kLx
Weight: 44g (including cable but not including bracket and screw)
