Specifications
FEATURES
Tuner
Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
Memory: Auto
Memory
Seek Mode:
Local / DX Selection
RDS
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
DAB+ Tuner
Built-in
DAB+/DMB
Supported
DAB+ Slideshow
Service
DLS (Dynamic
Label Service)
DAB Service
Following
RDS Fallback
(where available)
Service
Preset: 18 Preset Memory
Auto
Ensemble/Service Memory
Service Search
Function
PTY Search
Function
Alphabet
Search Function
Antenna Power
Supply Selection
BLUETOOTH®
Built-in
BLUETOOTH® Module
Wide Band
Speech Technology
HFP
(Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5
Compatible
Advanced
BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music Streaming
Phone Book:
Phone Book Synchronization
Speed Dial: 4 Preset Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name
Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial
Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF
(Touch-Tone) Function
Signal
Strength Indicator
Battery Level
Indicator
Menu Language
Selection: 24 Languages
Firmware
Updatable
Microphone
integrated
Made for
iPod® / iPhone®
Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen.,
iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with
video, iPhone 7 and 7 Plus, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5,
iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
KCU-471i Required (Sold separately)
Music Playback
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre /
Composer / Audiobook
Alphabet
Search
Artwork
Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery
Charging
Connectivity
Works with Apple CarPlay (requires CarPlay enabled iPhone)
Works with Android Auto (Requires Android Auto enabled smartphone)
USB Media
Connection
USB Connection
Music and Video Playback: FLAC/MP3/WMA/AAC/AVI/MP4/MKV Playback
File / Folder
Name Search
Tag Info
Search
Folder Up /
Down
M.I.X. Random
Play
Repeat
Sound
Tuning
Bass Engine SQ
Bass Engine™
Pro
Subwoofer
Level Adjustment
Subwoofer
Phase Select
2 V High
Voltage PreOut
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy
Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel
Digital Time Correction
Digital
Crossover Setting
Customized Sound Setting by Car Type
MediaXpander
HD
Application
Volume Level Setting
Sound Setting
Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt
App ready
General
Power Output: 4 x 50 W High Power Amplifier
Advanced Power
IC
Display: 9?? Capacitive WVGA High Resolution Display
White LED Backlighting System
Control Type: Touch, Drag, Flick
My Favourites Function
Automatic Setting Change for 2 Users
High Grade Audiophile Design
3
PreOuts (2 V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
AUX-In: 1 A/V AUX Input (RCA)
Steering Wheel
Remote Control Function
Remote Control
Ready
Camera Connection & Built-in Controls for Multi-View Cameras
Camera Guide
Line Adjustment
Rear view Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast
Adjustment
Menu Language: 24 Languages (for AV / Bluetooth)
Clock
Auto Dimmer
Anti-theft
security code
Firmware
Updatable
Microphone
integrate
Power Antenna
Lead
Remote Turn-On
HDMI Input (Alpine Special HDMI connector required)
Engine Start-Stop unaffected
SWRC Interface Included
Ready for optional DVD Player DVE-5300
Installation

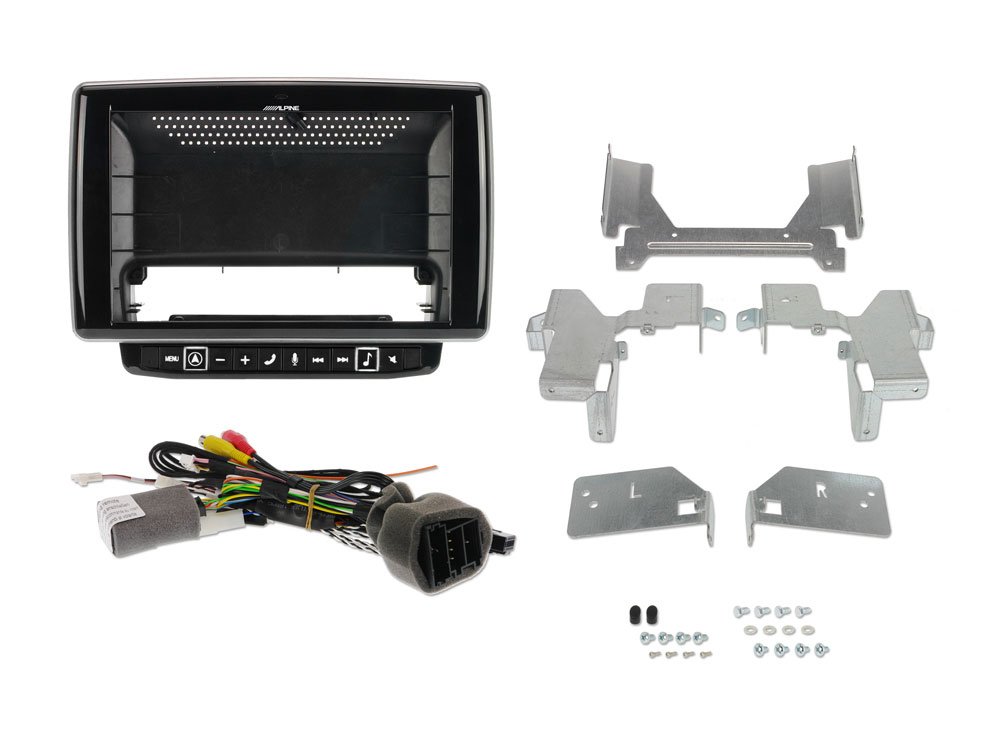

Includes installation brackets, wiring harness and SWRC interface for complete
installation.
SPECIFICATIONS
Screen
Screen Size: 9
inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation
System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination
System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System:
NTSC, PAL
Max Power
Output Ratings
Max Power
Output: 4 x 50 W
FM Tuner
Tuning Range:
87.5 - 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate
Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo
Separation: 35 dB
Capture Ratio:
2 dB
MW Tuner
Tuning Range:
531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
Tuning Range:
153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
USB
Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System:
FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding:
Windows Media™ Audio
AAC Decoding: ACC-LC format ??.m4a?? file
Flac Decoding
USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on
the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel
Separation (at 1kHz): 85 dB
GPS /
Glonass
GPS / Glonass compatible navigation antenna included
BLUETOOTH®
BLUETOOTH®
Version: Bluetooth V3.0+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
OPP (Object
Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set
Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial
Port Profile)
Sound
Tuning
Subwoofer
Level Adjustment: 0 to +15
Subwoofer
Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
HighPassFilter:
20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
HighPassFilter
(Gain): -12 to 0 dB
LowPassFilter:
20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
LowPassFilter
(Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9ms (0.1ms step)
Dual HD EQ
Front + Rear
Parametric
Equalizer (Band 1): 20 - 100 Hz
Parametric
Equalizer (Band 2): 63 - 315 Hz
Parametric
Equalizer (Band 3): 125 - 500 Hz
Parametric
Equalizer (Band 4): 250 - 1k Hz
Parametric
Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric
Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14
HDMI
Section
Input Format
720p/480p/VGA
Output Format
480p
General
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2 V / 10k ohms
Maximum
Mounting Angle: 30°
Dimensions

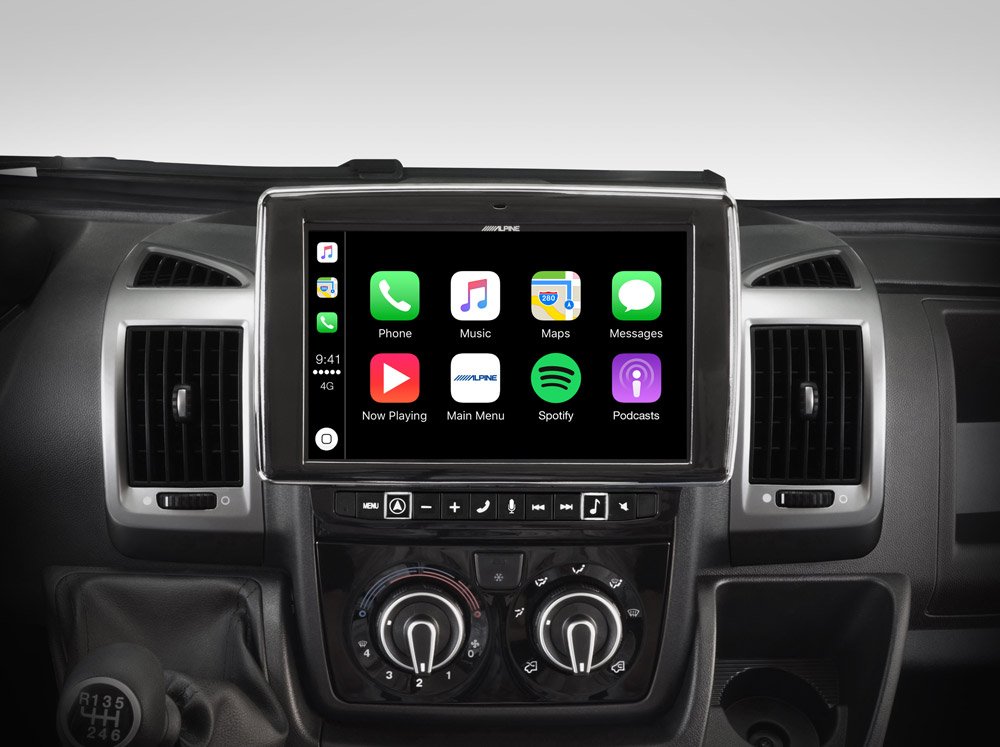

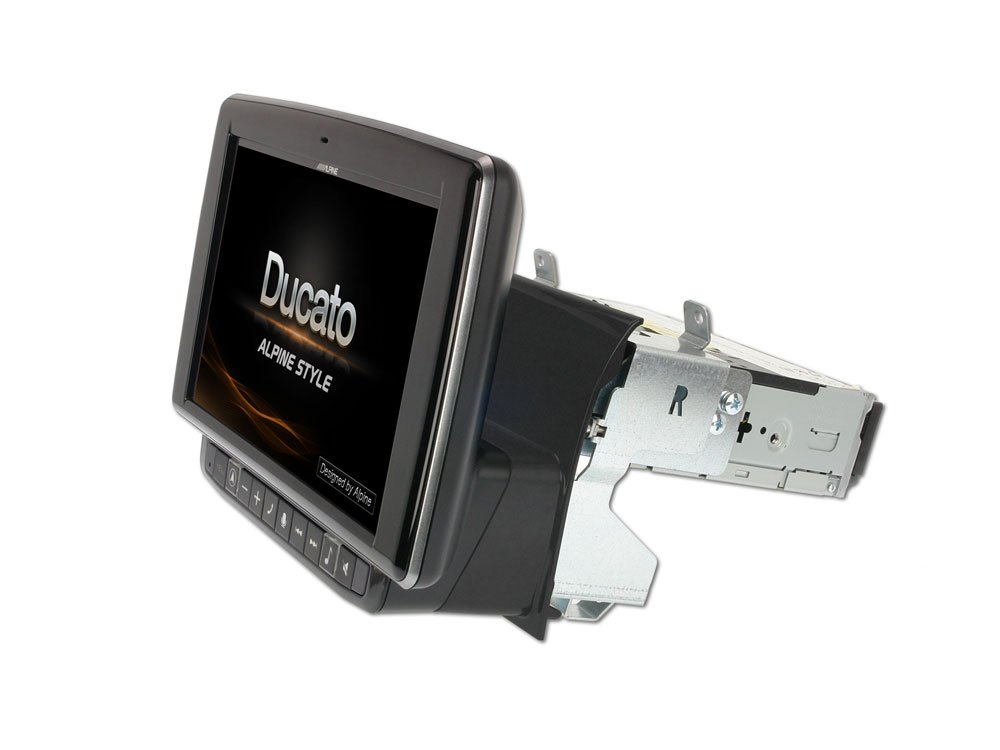

i902D-DU: Fits for Fiat Ducato III (250), CITRO?N Jumper II (250) and Peugeot
Boxer II (250)
Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
