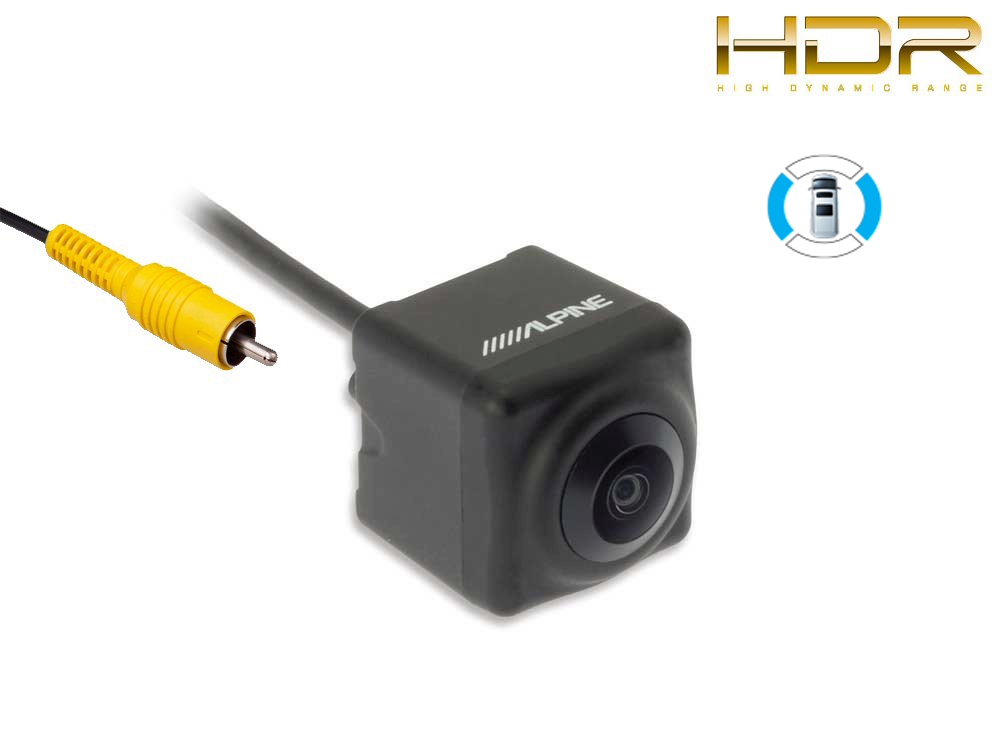

The HCE-CS1100 is a High Dynamic Range Side View camera for Alpine devices with
direct camera input or RCA connection. It includes a universal mirror mount and
a long connection cable.
Thanks to HDR technology, the picture quality is much
better compared to regular camera systems - for easier manoeuvring and greater
safety.
A side-view camera is a great addition to the more traditional front and rear
camera systems. It can prevent scratched rimes during parking or for example be
used as surveillance of the side of your motor-home.
All New Alpine HDR Cameras
Alpine’s all new HDR cameras are simply amazing and offer many new technologies
that make manoeuvring your vehicle easier and safer.
High-resolution camera for great picture quality and high details
Amazing night-view capabilities in low-light environments
Fast exposure adjustment when moving from dark to bright environments (for
example underground parking, tunes, etc)
New, small connectors for easy installation of camera and cables
Side Surveillance of your Vehicle
Install the camera below your side mirror to keep a perfect overview of
your rims while parking to prevent nasty scratches. You can also install
it on top of the side entrance door of your motor-home for surveillance

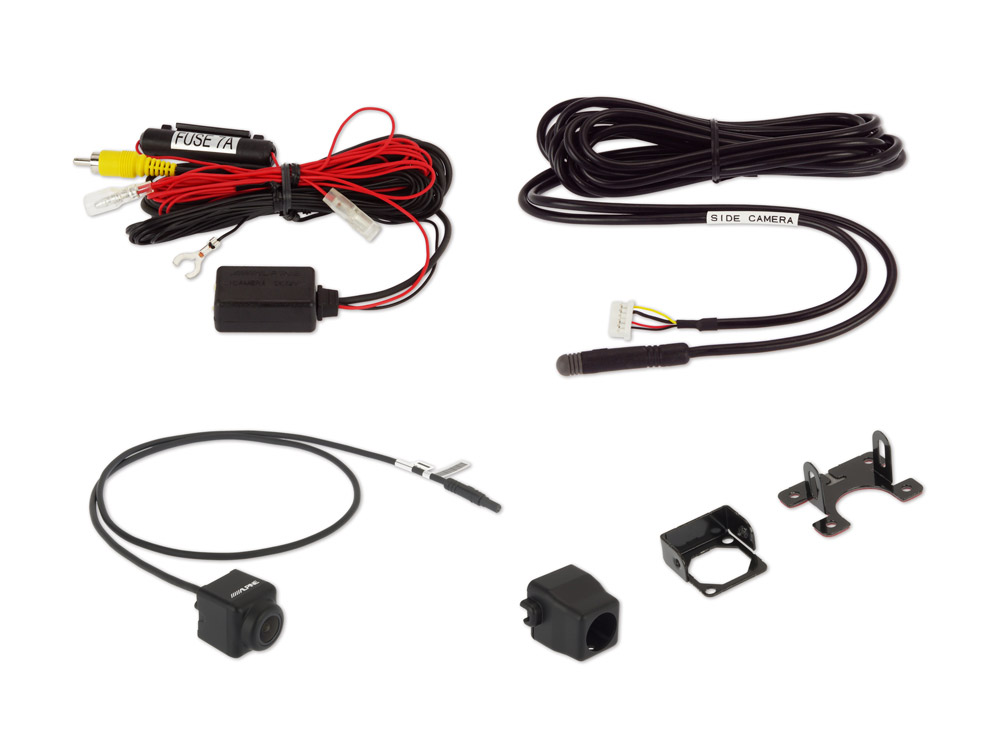

of the entrance. The Camera includes a handy installation housing for
side installation.
RCA and Alpine Direct Output
Convenient RCA output means this camera can be used with any monitor.
The HCE-CS1100 includes a Alpine direct to RCA adapter that allows the
use of the camera with any other media station.
Connect up to 3 cameras
The optional KCX-C250MC enables connection of up to three Alpine direct
connection cameras. You can switch between cameras via touch operation
on your Alpine screen and select different viewing modes.
Extension Cable
This camera has a total cable length of 4.25
meters with direct connection or 7.25 meters with attached RCA adapter.
If you need a longer cable for
trucks, camper vans, etc, Alpine offers the optional KWE-EX5CAM camera
extension cable that gives you an extra 5 meters.
FEATURES
General
High Dynamic Range (HDR) Side View Image
RCA Video Signal (NTSC) Output
Alpine direct to RCA adapter included
Camera
Negative Ground Type
Color CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization
SPECIFICATIONS
Dimensions
Camera: 23.6 x 23.6 x 26.5mm (excluding projection on the rear)
Power Section: 38.0 x 25.0 x 15.0mm (excluding projection)
Camera Cable Length: 0.75m
Camera Extension Cable Length: 3.5m
Power Unit (Reverse/ACC/Video/GND): 3m
General
Power Requirement: DC 9V to DC 15.6V
Power Consumption: 1.2W (12V)
Operating Temperature (Power Section): -30°C - +70°C
Weight Camera: 33g (camera only)
Weight Power Section: 83g (including cord)
Camera
Ground Type: Negative Ground Type
Output Image: Composite Video NTSC
Image Output Impedance: 75 Ohms (1Vp-p)
Image Sensor: 1/3.7 inch CMOS image sensor, Aspect Ratio 4:3
Effective Number of Pixels: 640 (H) x 480 (V), Approximately 300,000
pixels
Lens Focal Length: f=2.8mm
Lens Brightness: F=1:2.0
Angle of Field: Horizontal = 82.7° , Vertical = 60.5°
S/N Ratio: 40.5 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C - +70°C
Illumination Range: Approximatly 1.5Lx to 100kLx
