Specifications!

Full Digital, In-Vehicle Amplifier for Competition-Level Sound.

Under the umbrella of the Pioneer Reference Series (PRS), the PRS-D800 has been crafted using only the highest quality components to bring superior sound quality to a broader range of consumers and vehicles.

A full-range, Full Digital (Class D), bridgeable 2-channel amplifier, the PRS-D800 is unique due to its high power, high sound quality and ultra-compact size.

Main Features

• Maximum power 600 W
• Frequency response 10 - 30.000
• Input level control 400 mV to 6.5 V (A/B Independent)
• Distortion <0.004
• S/N ratio >105
• Max. current consumption 6.4 A / 4 Ù for two channels
• Chassis size (W x H x D) 255 x 50 x 104
• Unit weight 1.6
• Continuous power output
  • 125 W RMS x 2 Channels (at 14.4V, 4 Ù)
  • 150 W RMS x 2 Channels (at 14.4V, 2 Ù)
  • 300 W RMS x 1 Channel (at 14.4V, 4 Ù BRIDGE)
• Car Amplifier Group
• Pioneer Reference Series (PRS)
• Load impedance capability 2 Ù - 8 Ù Stereo
• CEA 2006 Power
  • 2 Channels at 14.4V, 4 Ù
  • 2 Channels at 14.4V, 2 Ù
  • 1 Channel at 14.4V, 4 Ù BRIDGE
• RCA terminals 2-Ch. (Gold-plated)
• High Voltage Input Capability

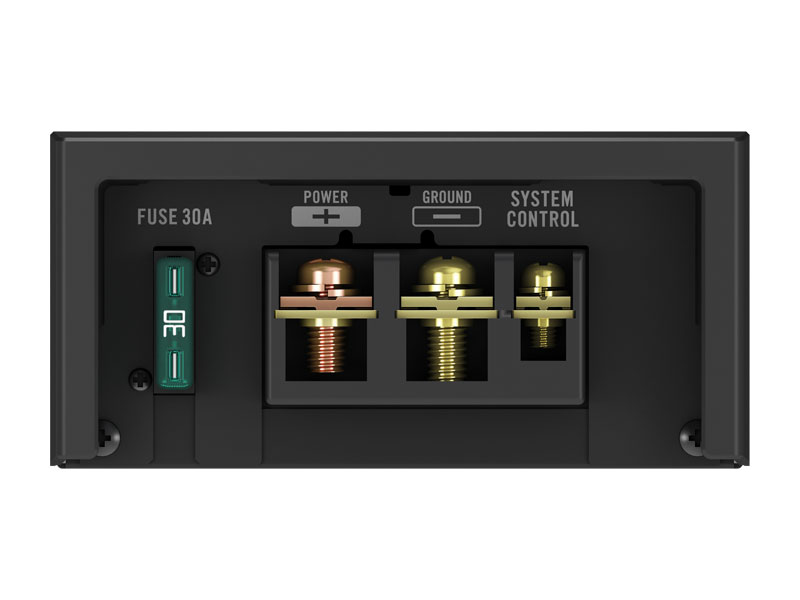

• Speaker Terminals Screw-type
• 2-channel
• High performance balanced isolator circuit
• Compact size
• MOSFET output section
• D-class
