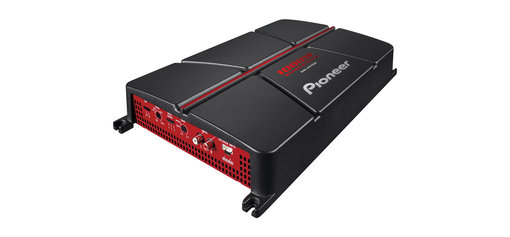

Pioneer GM-A5702

Γράψτε μια κριτική και μοιραστείτε τις σκέψεις σας με τα άλλα μέλη.
Δεν υπάρχουν κριτικές για το προϊόν.

Quick Overview

2-Channel Bridgeable Amplifier (1000W), MOSFET 900W/ 4Ω: 150W x 2, 480W x1 (Bridged), 2Ω: 240W x 2
209,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 10+ Ημέρες

Περιγραφή

Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V , you can turn your in-car audio experience into the sound staging environment that you’re looking for. The GM-A5702 offers support for 2 Ohm and 4 Ohm speakers, and can produce a massive power of 1000 W.

Specifications!

Configure Your Perfect Audio Setup

Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V , you can turn your in-car audio experience into the sound staging environment that you’re looking for.

The GM-A5702 offers support for 2 Ohm and 4 Ohm speakers, and can produce a massive power of 1000 W.

Variable LPF

adjust your low-pass filter frequency for greater audio system flexibility.

Main Features

  • Chassis size (W x H x D) 356(W) X 60(H) X 215(D) mm
  • Unit weight 2.2
  • Maximum power input 1000W (Bridged) or 2 x 300W (4 Ω) or 2 x 500 W (2 Ω)
  • 2-channel
  • CEA 2006 Power 2 x 150W (4 Ω)
  • Continuous power output 2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω)
  • Load impedance capability 2-8 ohm allowable (stereo)
  • Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
  • Distortion < 0.05 %
  • S/N ratio > 96 dB
  • Bass Boost 50Hz; 0/6/12dB
  • LPF 40-500 Hz (-12 dB/oct)
  • Speaker Terminals Screw-type
  • Speaker Input Level 3 - 26 V
  • Max. current consumption 36A

Connections

  • High Voltage Output 300 mV - 6.5 V
AMPLIFIER
Dimension W x H x D) 356(W) X 60(H) X 215(D) mm
Frequency Response 10Hz ~ 70kHz (+0dB , -3dB) Hz
Impedance Capability 2-8 ohm allowable (stereo)
Power Output 2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω)
S/N ratio > 96 dB
Speaker Input Level 3 - 26 V
Speaker Terminals Screw-type
Unit Weight 2.2
