Navinc PV-LAS-K-R41

�� .
�� .

Quick Overview

Laserline PDC interface Front+Rear on OEM VW/Seat/Skoda system

179,00�

�� :

��:

�� : 5-7 ��

��

General:

With the Parkview set it is possible to mount aftermarket rear parking sensors of Laserline on an original radio- or navigation system of Seat, Skoda or Volkswagen.�

On the display of the original radio a graphical image will be displayed of the parking sensor information.�

Features:

# Laserline PDC sensors�NOT included

# Optical display of�Laserline PDC on the�original radio display

# CAN-BUS controlled

# Original display of graphic car image

# CE & TUV certified

�

Installation�examples:

The following will be supplied:

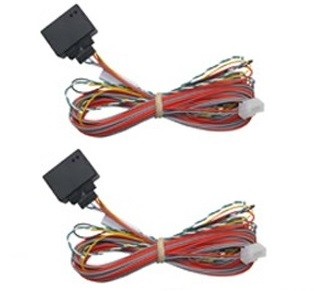

- Laserline PDC CAN-BUS interface Front + Rear

- Universal cable kit�& adapter included

- Installation- and user manual
- Warranty
- Invoice

�

�

Extra information:

- Check compatibility with your car before you order the interface at tab "Compatibility".

- Only suitable for sensors mounted in the rear bumper of the car.

- PDC option must be activated�via Diagnostic�(activation guidance manual included).

�

Technical details:

UNIT:
- Rated: DC12V/24V
- Range of operating voltage: 30V ~ DC9.6V
- Standby Current: <100 mA
- Operating current: <200 mA
- Operating temperature: -25 � C ~ 80 � C
- Storage Temperature: -30 � C ~ 85 � C
- Frequency: 40KHz � 2 KHz

Compatibility!

Compatibility:

Interface is suitable for the following parking sensors of Laserline:

EPS4006D

EPS 404B

Remarks:

- About other radio systems we do not have test results

- Only suitable for car models as mentioned below

- PDC option must be activated via diagnosis (activation schedule included).

- Only in combination with OEM front + rear parking sensors

Car models:

The interface is suitable for the following models in combination with OEM radio:

Seat

Car	Year	Radio compatible
Alhambra	2011 - 201>	RCD310 / RCD315/ RNS310 / RNS315
Altea	2011 - 201>	RCD310 / RCD315/ RNS310 / RNS315
Leon	2011 - 201>	RCD310 / RCD315/ RNS310 / RNS315

Skoda

Car	Year	Radio compatible
Fabia	2011 - 201>	RNS Amundsen / Swing
Octavia III	2011 - 201>	RNS Amundsen / Swing
Roomster	2011 - 201>	RNS Amundsen / Swing
Superb	2011 - 201>	RNS Amundsen / Swing
Yeti	2011 - 201>	RNS Amundsen / Swing

Volkswagen:

Car	Year	Radio compatible
Beelte	2012 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Caddy	2010 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Eos	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Golf Plus	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Golf VI	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Golf VII	2013 - 201>	MIB Entry / MIB Standard
Jetta	2010 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Multivan	2010 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Passat	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Passat CC	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Polo	2010 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Scirocco	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Sharan	2010 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Tiguan	2009 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Touran	2010 - 201>	RCD310 / RCD315/ RNS310 / RNS315 / RCD510 / RNS-510
Phaeton	2010 - 201>	RNS-810 (testing)
