Navinc NAVconnect IF-FCA-GV1PHV

Γράψτε μια κριτική και μοιραστείτε τις σκέψεις σας με τα άλλα μέλη.
Δεν υπάρχουν κριτικές για το προϊόν.

Quick Overview

Multimedia HDMI interface FCA Uconnect 2021>
459,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 5-7 Ημέρες

Περιγραφή

New Page 1
General

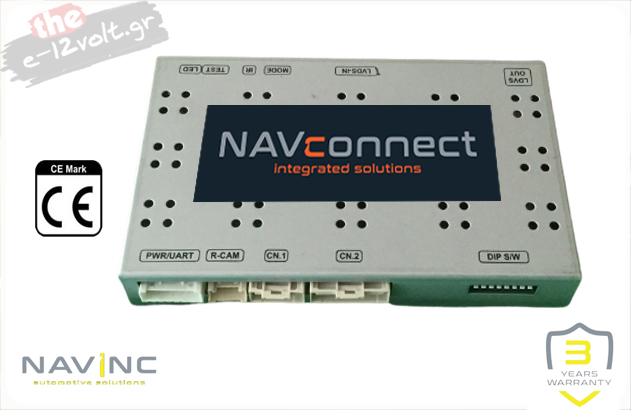

The NavInc NAVconnect interfaces allow for connecting video sources to the original Uconnect system from: Jeep, Dodge, Maserati & Fiat.


Features
- Rear camera input
- Front camera input (with auto switch OFF)
- Side view camera input (left/right)
- Side view camera's responding on the lefti/right indicator
- LVDS input (to connect APPplay & NAVplay)
- HDMI input
- Adjustubele parking lines via OSD menu
- iPAS lines (moveable gridllines)
- Steering wheel button support
- Support CVBS & AHD cameras
- 3 Year warranty & Support

Example video


OEM BUTTON




CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.


Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec


NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION
The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility!

Συμβατό με τα παρακάτω οχήματα
Fiat | Jeep | Maserati | Dodge
Συμβατό με τα παρακάτω οχήματα Fiat

    Ducato
    2021-20..
  • Head-unit
    Uconnect 10.1"

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    LVDS

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    CAN & Lamp

  • Touch support
    OEM

  • Notes
    Side view camera input (Left & Right)

  • P&P cable kit

Επιστροφή στην Αρχή
Συμβατό με τα παρακάτω οχήματα Jeer

    Grand Cherokee
    2022-20..
  • Head-unit
    Uconnect 10.1"

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    LVDS

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    CAN & Lamp

  • Touch support
    OEM

  • Notes
    Side view camera input (Left & Right)

  • P&P cable kit


    Compass
    TESTING
  • Head-unit
    Uconnect 10.1"

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    LVDS

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    CAN & Lamp

  • Touch support
    OEM

  • Notes
    Side view camera input (Left & Right)

  • P&P cable kit
Επιστροφή στην Αρχή

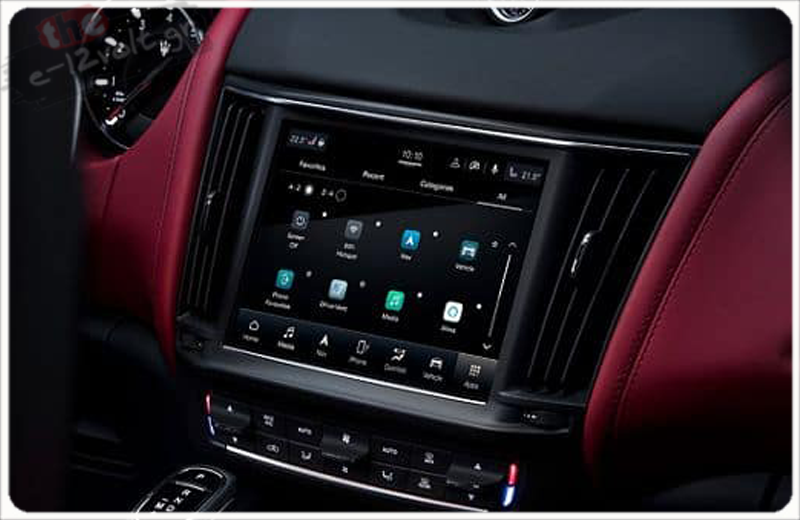

Συμβατό με τα παρακάτω οχήματα Maserati

    Levante
    2021-20..
  • Head-unit
    Uconnect 8.4"

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    LVDS

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    CAN & Lamp

  • Touch support
    OEM

  • Notes
    Side view camera input (Left & Right)

  • P&P cable kit




 Επιστροφή στην Αρχή

Συμβατό με τα παρακάτω οχήματα Dodge

    Ram
    2021-20..
  • Head-unit
    Uconnect 8.4"

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    LVDS

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    CAN & Lamp

  • Touch support
    OEM

  • Notes
    Side view camera input (Left & Right)

  • P&P cable kit

 Επιστροφή στην Αρχή
