Navinc NAVconnect RC-AUDI-7G

Γράψτε μια κριτική και μοιραστείτε τις σκέψεις σας με τα άλλα μέλη.
Δεν υπάρχουν κριτικές για το προϊόν.

Quick Overview

Camera interface Audi Etron/A6/A7/A8/Golf8/ID3 Porsche PCM5.0 & PCM6.0 (F-cam/R-cam/iPAS)
429,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 5-7 Ημέρες

Περιγραφή

General

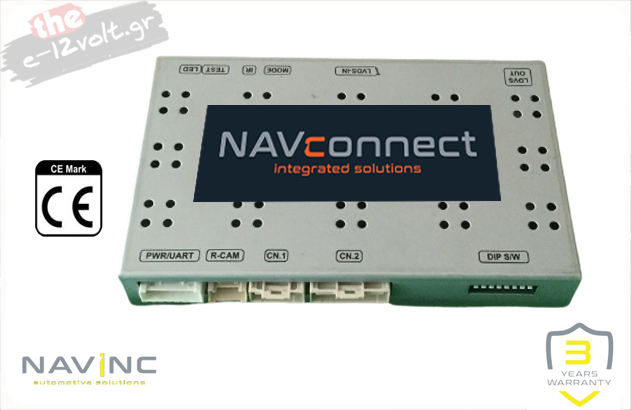

The NavInc NAVconnect interfaces allow for connecting video sources to the original VAG MIB3 head-unit.
The interface is equipped with various options such as; 1* Front camera input & 1* Rear camera input.




Features
- 1x Rear camera input
- 1x Front camera input (with auto switch OFF)
- Split screen option (PiP)
- iPAS option (moveable grid lines)
- Adjustubele parking lines via OSD menu
- 3 Year warranty & Support


EXCLUSIVE INTERFACE FEATURES


Features:

- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- OSD menu


CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.


Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec


NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION

The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility!

Συμβατό με τα παρακάτω οχήματα
Audi| Volkswagen | Porsche
Συμβατό με τα παρακάτω οχήματα Audi

    A1 (GB)
    2018-20..
  • Coding needed
    No

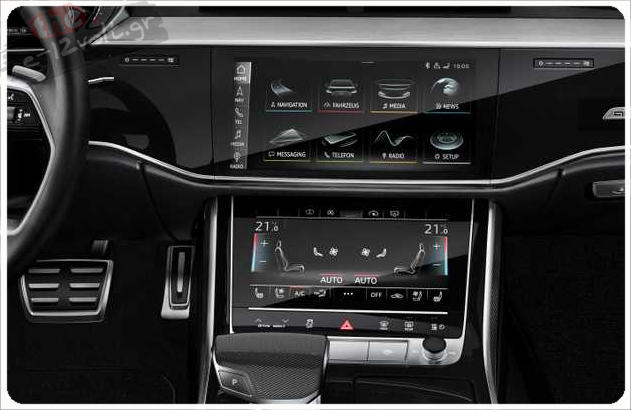

  • Head-unit
    MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    A3 (8Y)
    2020-20..
  • Coding needed
    No

  • Head-unit
    MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    A4 (8W) facelift
    05/2019-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    A5 (F5) facelift
    05/2019-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    A6 (4K)
    06/2018-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    A7 (4L)
    02/2018-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    A8 (4N)
    11/2017-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q3 (F3)
    2019-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q4
    2021-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q5 2021-20>
    2021-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q5 Sportback 2021-20>
    2021-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q7 (4M)
    09/2019-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q8 (4M)
    07/2018-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Q8 E-tron
    07/2018-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    E-tron (GE)
    03/2019-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    E-tron GT (F8)
    2021-20..
  • Coding needed
    No

  • Head-unit
    MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit




Επιστροφή στην Αρχή
Συμβατό με τα παρακάτω οχήματα Volkswagen
    Touareg
    2018-2023
  • Coding needed
    No

  • Head-unit
    Discover Premium (15")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit

Επιστροφή στην Αρχή

Συμβατό με τα παρακάτω οχήματα Porsche
    Cayenne (E3)
    2017-2023
  • Coding needed
    No

  • Head-unit
    PCM5

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Cayenne
    2023-20..
  • Coding needed
    No

  • Head-unit
    PCM5

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Cayenne coupe
    2019-20..
  • Coding needed
    No

  • Head-unit


  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Macan
    2018-20..
  • Coding needed
    No

  • Head-unit


  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    911
    2019-20..
  • Coding needed
    No

  • Head-unit


  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


    Taycan
    2019-20..
  • Coding needed
    No

  • Head-unit


  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch & OEM

  • Signal
    4-Pin - HSD

  • Open head-unit

  • CVBS signal
    NTSC/PAL/AHD

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp & CAN

  • Touch support
    Yes

  • Notes


  • P&P cable kit


 Επιστροφή στην Αρχή

Demo Video





Παρατηρήσεις

Συμβατό με τα παρακάτω οχήματα



Audi A1 2018 - 20..

Audi A3 2020 - 20..

Audi A4  2019 - 20..

Audi A5  2019 - 20..

Audi A6  2018 - 20..

Audi A7  2018 - 20..

Audi A8  2020 - 20..

Audi Q3  2018 - 20..

Audi Q7  2019 - 20..

Audi Q8  2018 - 20..

Audi e-tron  2019 - 20..

Audi SQ4* 2022-20..



Volkswagen Touareg  2018-2023





Porsche PCM5.0

Cayenne 2017.. PCM5 system (12")
Macan 2018-20.. PCM5 system (12")
911 2019-20.. PCM5 system (12")
Taycan 2000-20.. PCM5 system (12")



Porsche PCM6.0







Παρατηρήσεις



MMI Radio Plus (8.8") & MMI Navigation Plus (10.1")

*12'' Οθόνη

Απαιτείτε να διαθέτει Aux In ή να χρησιμοποιήσετε Αντάπτορα



compatible with CVBS NTSC / AHD720 / AHD1080

Περιλαμβάνει

The following is provided in the set

Package:

  1. Power cable (HPOWER0276K): 1x
  2. LVDS cable (HLCDCA00037): 1x
  3. Y-cable 12-pins (HARETC0288): 1x
  4. Remote (REMOTE0001): 1x
  5. IR eye (HIRCAB0002) 1x
  6. Interface module: 1x
  7. Manual: 1x
  8. Service instructions: 1x

Πληροφορίες

AUDIO OUTPUT
The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.
CVBS
Only compatible with NTSC sources.
SCREEN
Interface is compatible with 8.8”, 10.1”, 12,3”& 15” MIB monitors
FRONT CAMERA
The front camera input will automatically switch after leaving the reverse gear.
You can set the display time in seconds via the OSD menu (1-15 sec).
It is also possible to select the FRONT camera input manually
OEM REAR CAMERA
The interface does not switch back automatically to the OEM rear camera input when the reverse gear is engaged.
GUIDELINES
iPAS & Static lines are available via the interface OSD menu
iPAS
iPAS option is available (moveable grid lines)
PIP
PiP option is available for original parking sensor overlay  (Picture in Picture)
REAR SELECT CAMERA INPUT
When interface won’t respond on reverse CAN, please use the 12V reverse detection wire (grey wire)
INSTALLATION
We recommend that the installation will be performed by a qualified specialist
NOTE
PiP function = splitscreen or Picture in Picture, depending on car model

  1. Δεν υπάρχουν κριτικές για το προϊόν.

ΑΦΗΣΤΕ ΤΑ ΔΙΚΑ ΣΑΣ ΣΧΟΛΙΑ

Παρακαλούμε συμπληρώστε τα σχόλια σας καθώς και την βαθμολογία αξιολόγησης για το προϊόν με τίτλο 'Navinc NAVconnect RC-AUDI-7G'. *

  1 2 3 4 5
Βαθμολογία αξιολόγησης

ΔΕΙΤΕ ΕΠΙΣΗΣ

My Account
Contact Information
Υπηρεσίες Μας
©Copyright 2026 by GELISOUND. All Rights Reserved.
Powered by eShopkey | Protean Technologies
