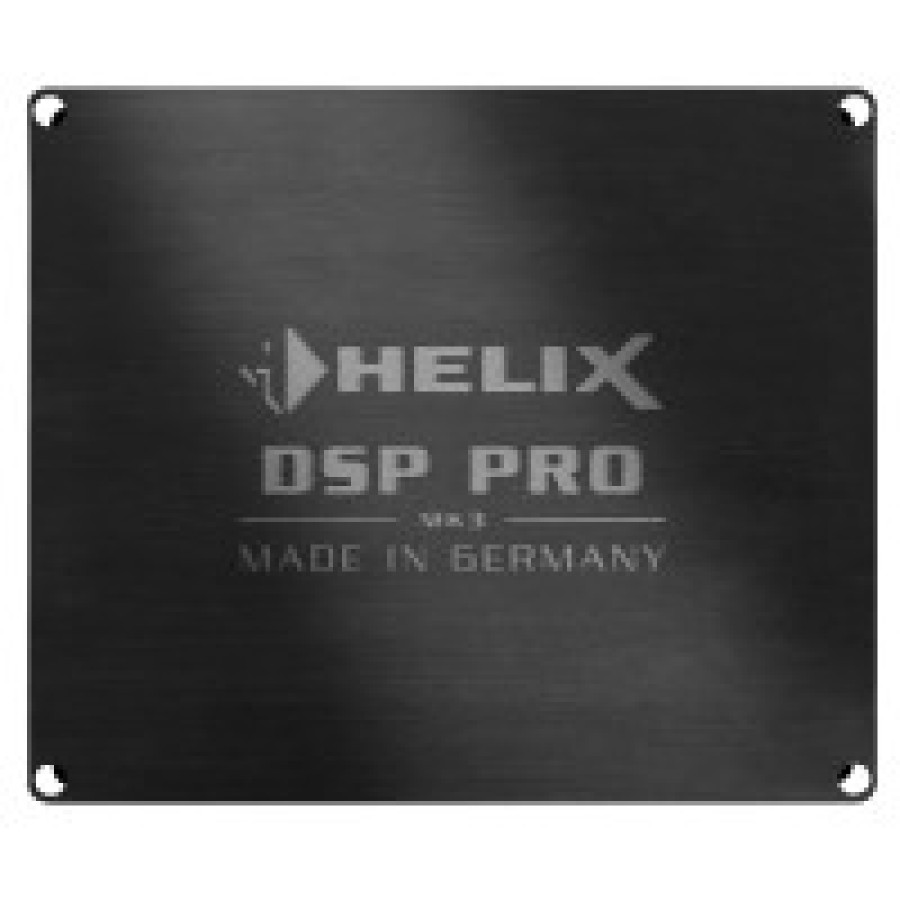

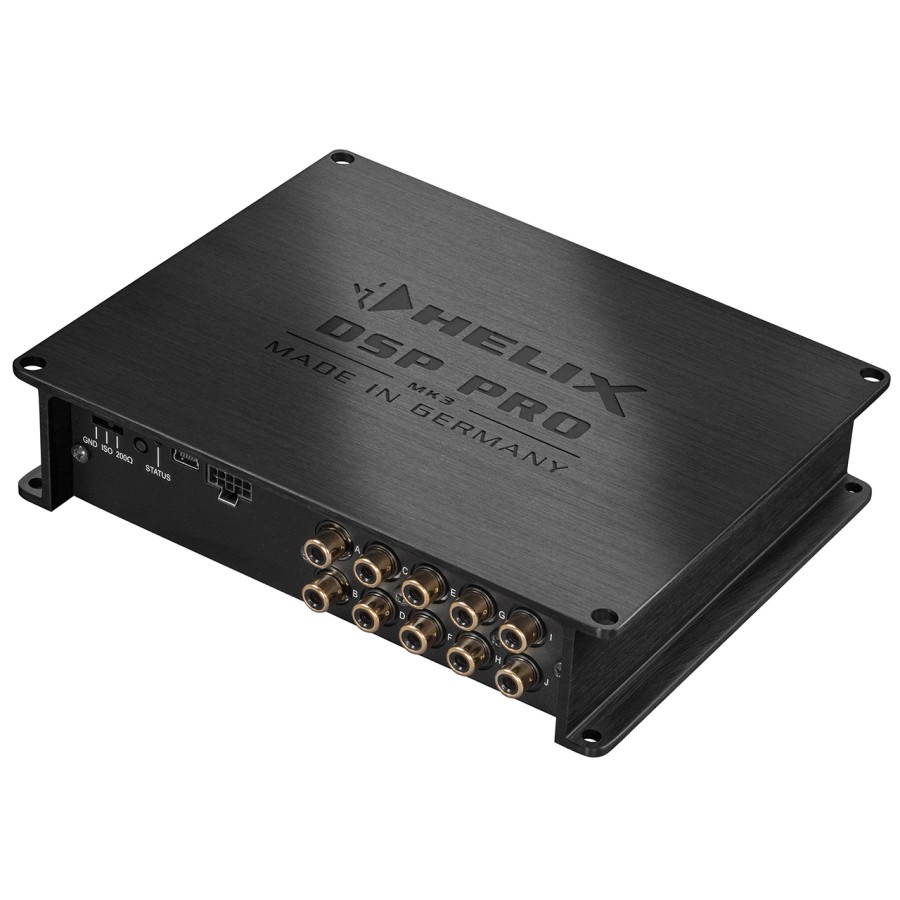

The next evolutionary stage of the DSP PRO
Familiar looks with the (r)evolution inside. The successor of the
DSP PRO comes in the renowned, elegant HELIX design, but is equipped with the
latest technology: Unrivalled High-Res sound quality thanks to twice as much
processing power compared to its predecessor, ACO Platform for an extended
feature set as well as VCP (Virtual Channel Processing) for easy configuration
of highly complex sound systems. Additionally, there are the revised highlevel
inputs with three-stage input sensitivity adjustment and extended voltage range
up to max. 32 Volts as well as our extremely compact and solid Smart Control
Port. One thing/s for sure: Due to featuring all these state-of-the-art
technologies, the DSP PRO MK3 without a doubt belongs to the A-list of signal
processors.
State-of-the-art Technology and TwinDSP power for the ultimate
High-Res sound experience
The DSP PRO MK3 is equipped with two of the most powerful 64-Bit
audio signal processors from Analog Devices. The incredible processing power of
2.4 billion MAC operations per second, combined with the high sampling rate of
96 kHz (resulting in an audio bandwidth of over 40 kHz) and AKM Velvet Sound A/D
and D/A signal converters, ensure outstanding sound in High-Res quality.
ACO – Advanced 32 Bit CoProcessor Platform
The DSP PRO MK3 is now equipped with our proprietary 32 Bit ACO
platform, which doesn’t just take over all control tasks ultra-fast, but also
handles a bunch of audio functions: Now, fantastic sound effects such as
Augmented Bass Processing or Real Center are implemented as well as a
channel-separated Input EQ including Input Signal Analyzer (ISA) for easy
analysis and compensation of input signals of OE radios, which already include a
sound setup ex works.
All you need for optimal connectivity

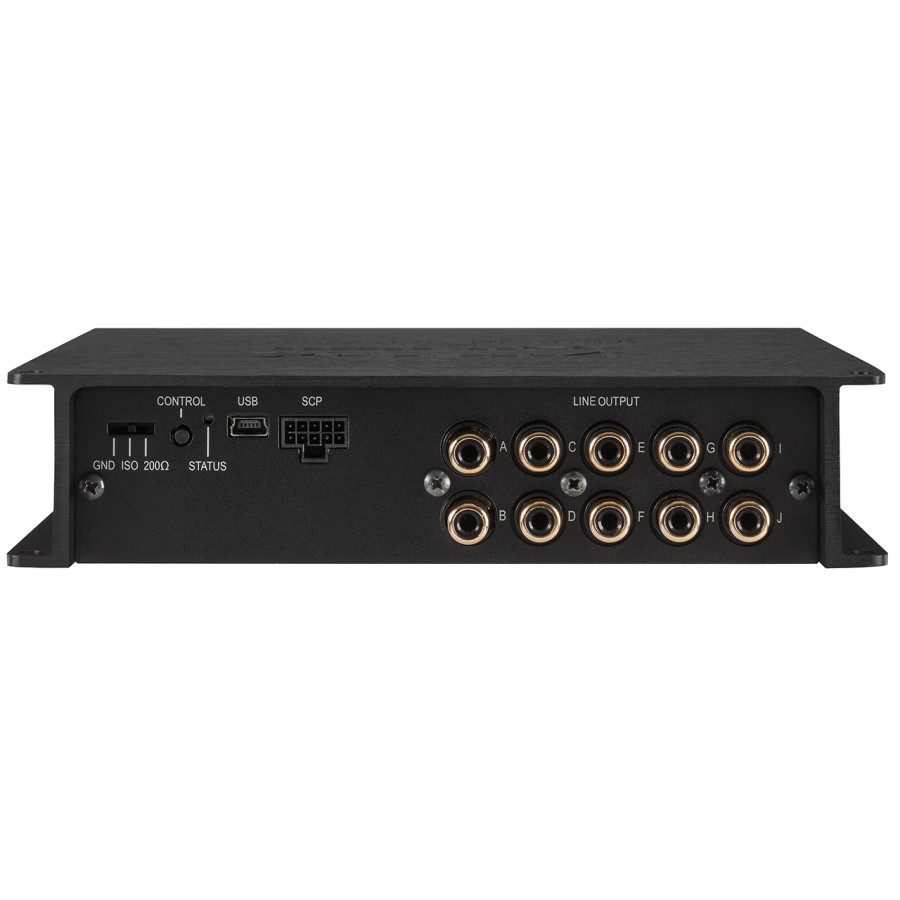

With its wide range of in- and outputs (8 x high level, 8 x RCA,
1 x optical, 1 x coaxial, 1 x HEC slot & 10 x line output), the DSP PRO MK3
offers everything for an easy adaptation to existing factory radios or
multi-channel OE sound systems. Additionally, the extended voltage range allows
the combination with almost any imaginable analog signal source, even with
high-power OE amplifiers.
DSP PC-Tool 5 feat. TuneEQ – Powerful features for ultimate sound
experiences
Of course, the HELIX DSP PRO MK3 can be easily configured via our
new, professional and exceptionally intuitive DSP PC-Tool 5. The well-known,
numerous setting options with their extensive sound processing functions leave
nothing to be desired and guarantee an extremely precise sound adjustment even
under the most difficult conditions. And thanks to the new, proprietary TuneEQ
function for automated frequency response correction, you also save a lot of
time when optimizing your sound.
