General:

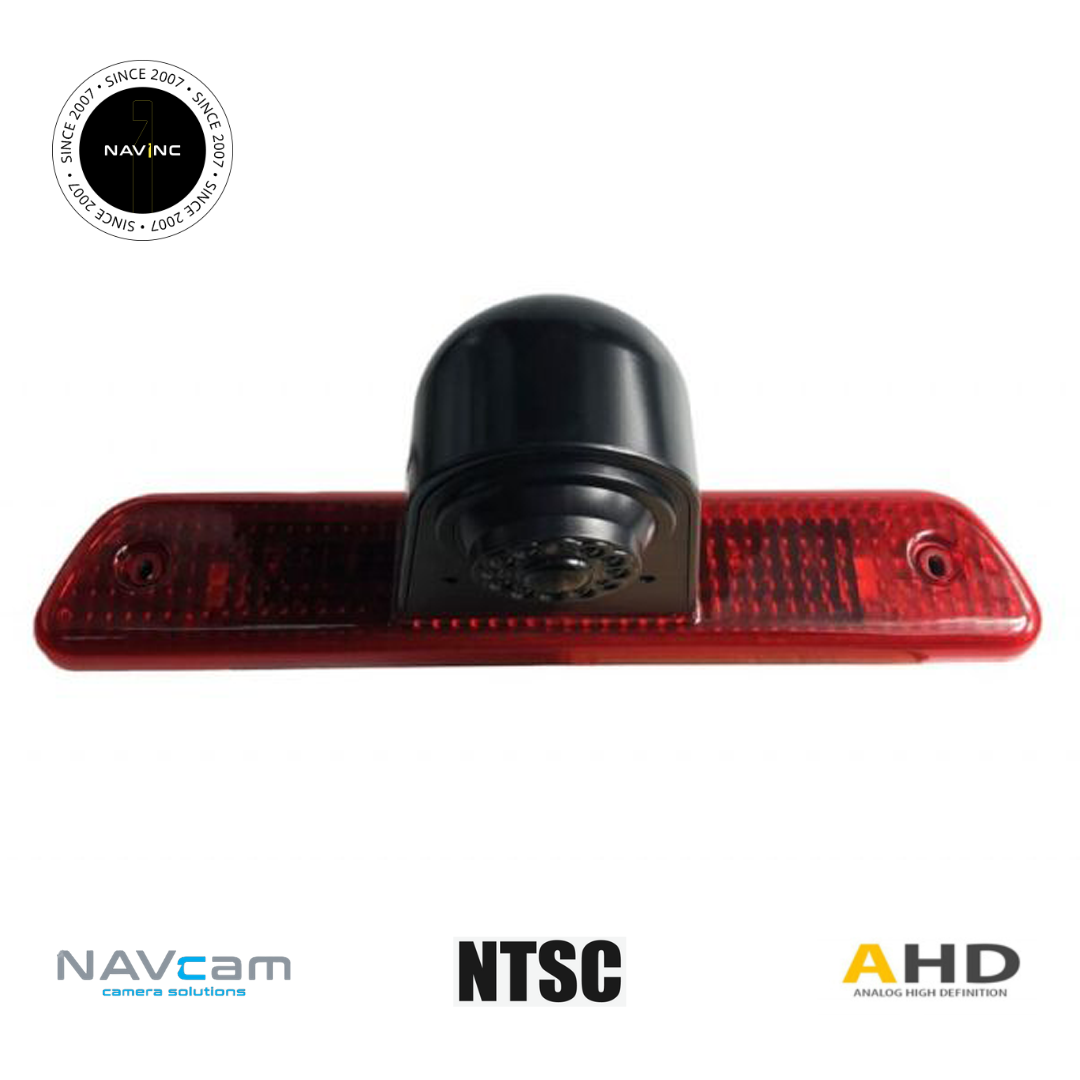

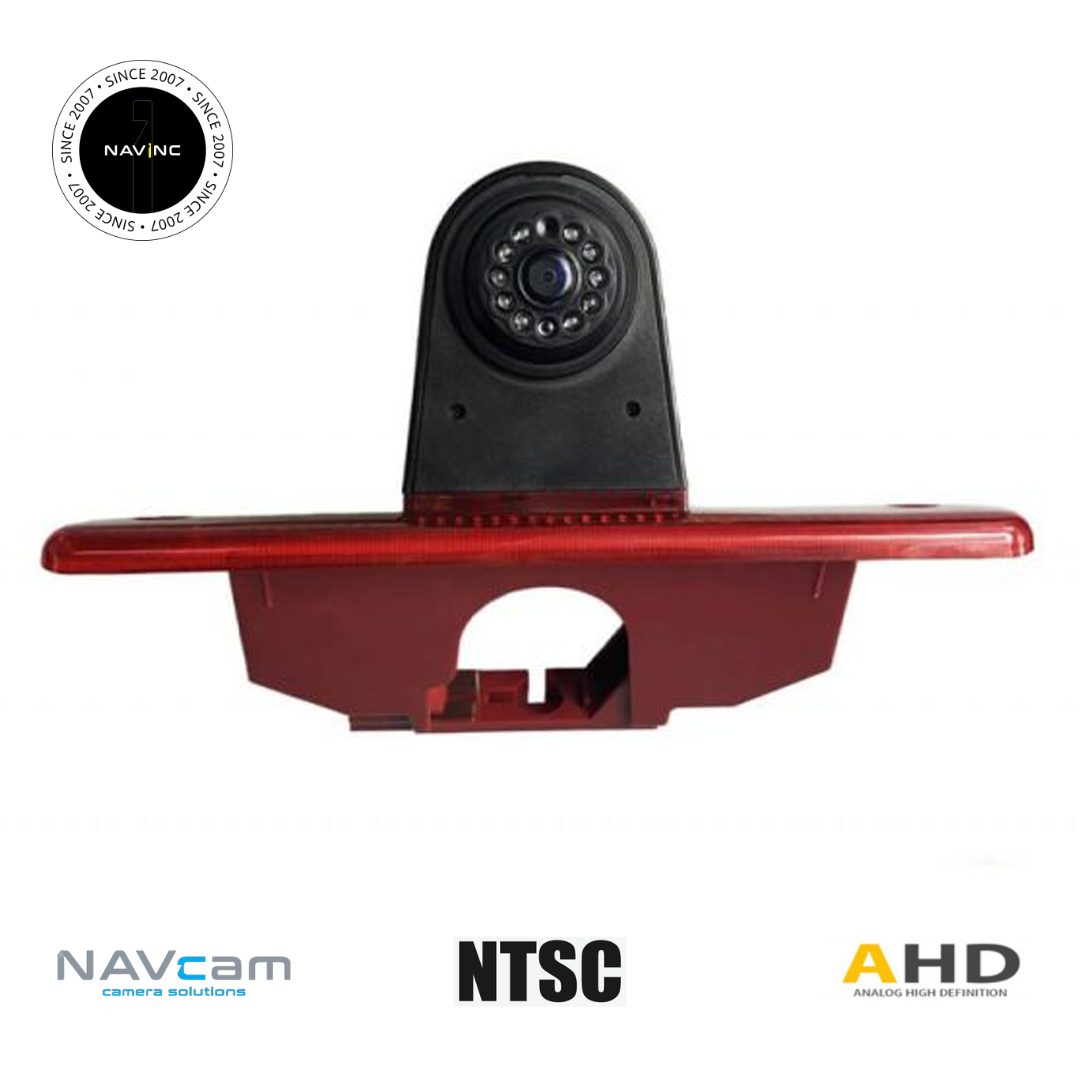

This reversing camera is specially dedicated for Peugeot/Citroen/Toyota
vehicles. The inconspicuous, robust camera simply replaces the brake light.
The camera is complete including plug and play cable kit which allows easy
plug and play installation. The camera is waterproof according to the IP69K
certification level.
Features:
# 1/3” Sony HD CCD lens
# Mirror picture
# 700TVL
# Ajustable lens
# Lens angle 170 degrees
# Waterproof according to IP69K certification level

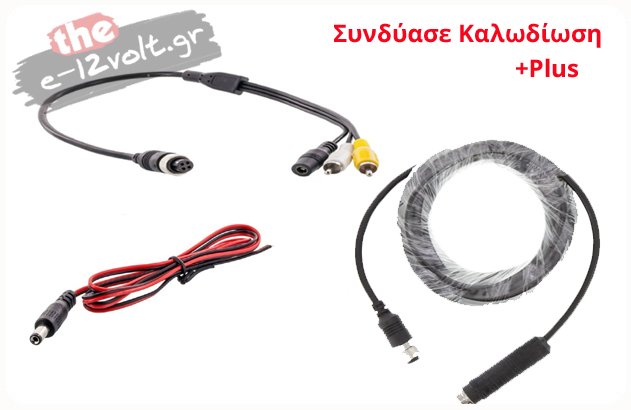

# 10 meter cable included (4-pins to RCA).
The following is provided in the set:
- Transporter brake light reversing camera NTSC
- Video extension cable 10 meter
- Power cable with RCA connector
- male-male RCA adapter
- Installation manual
- Invoice
- Warranty
Additional information:
- Check before you order the camera for the compatibility on the tab
“Compatibility” or the model.
- With a multimedia interface or video interface it is possible to connect
the camera with the original navigation system, ask for the possibilities.
- No IR Leds
Technical features:
- IP rating: IP69K (Weatherproof)
- Image Sensors : Color 1/3" SONY CCD HD
- TV System: NTSC
- Effective Pixels: NTSC 648x488 Pixel
- Sensing Area: 4. 9 ? 3.7 mm
- Horizontal Resolution: 700 TV Line
- Horizontal Sync.Frequency: 15.625 / 15.734 kHz
- Vertical Sync.Frequency : 50/60 HZz
- Video output: 1Vp-p,75Ohm
- Gamma Consumption: 0.45
- Auto Gain Controle: Automatic
- Back Light Compensation: Automatic
- S/N Ratio: Better than 48dB
- Lens Angle: 170° (degrees)
- Power Consumption: <3W
- Power Supply: DC +12V (10%)
- Operating Temperature: -30 C to +70 C
- Storage Temperature : -40 C to +80 C
- Connection: 4-pins to RCA
- Image: Mirror
- FCC,CE, E-mark?ISO9001,TS16984, RoHs
