General
This interface makes it possible to connect an external stereo audio source such
as iPod / MP3 player / DVD player / Telephone to the Mercedes radio navigation
system. The audio input is activated via the supplied diagnostic tool.
Input of the interface
concerns 2x cinch (audio tulip left & audio tulip right). The AUX input is
selectable via the AUX input in the Comand screen.
Features
# Connection via 12-pin input on the Quadlock
# Audio in STEREO
# Activation of included diagnostic tool
# Audio input: 2x Chinch connections
The following is provided:

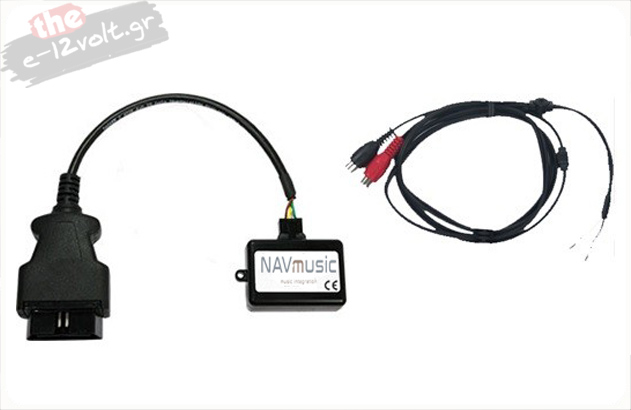

- Audio interface OBD-MB-N4AU
- Installation manual
- Guarantee
- Invoice
Extra information
- Installation is located behind the radio navigation unit
Compatibility!

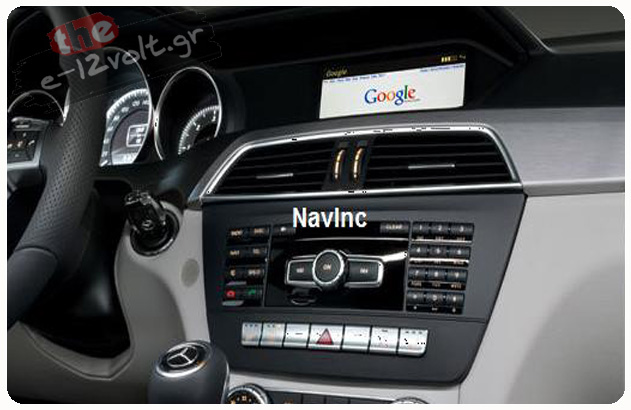

Comand Online /

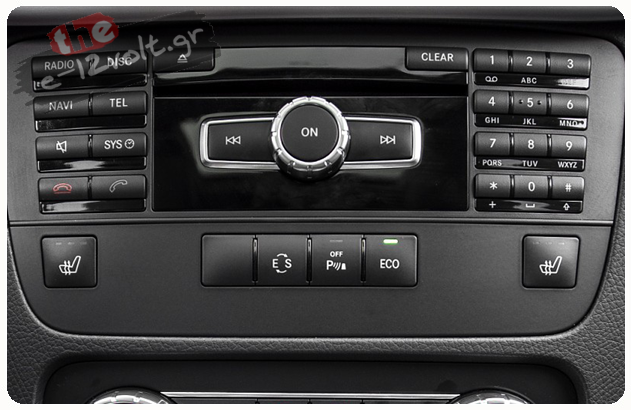

Audio 20
A Class (W176) 2012 - 2015
B Class (W246) 2012 -
2015
C Class (W204) 2011 -
2014
C Class Coupe (C204) 2011
- 2014
CLA Class 2013 - 2015
CLS Class (C218) 2010 -
2015
CLS Class Shooting 2012 -
2015
GLK Class (X204) 2011 -
2015
E Class (W212) 2011 - 2015
E Class (C207 Coupe) 2011
- 2015
ML Class (W166) 2011 -2015
SLS Class 2010 - 2015
SLK Class (R172) 2011 -
2015

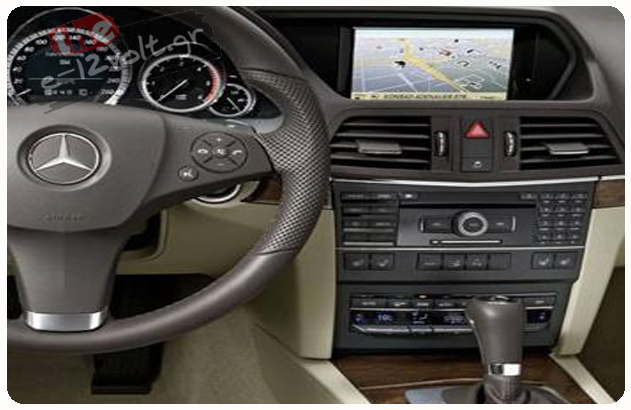

Comand NTG4.5
E Class 2009 - 2012
W212
E Class 2009 - 2012
W207 Coupe
CLS Coupe 01/2011 -
05/2011 C218

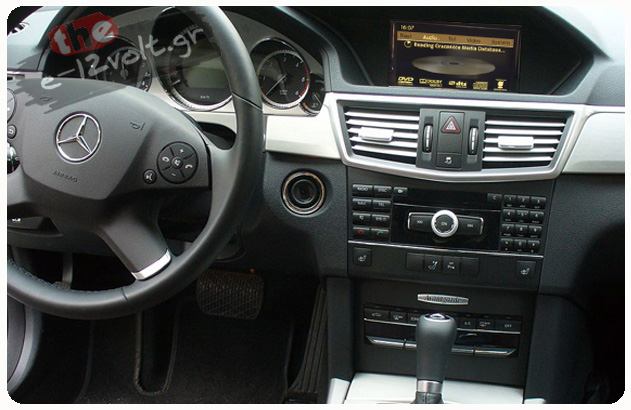

Comand NTG4
C Class 2007 - 2012
W204
CLC Class 2008 - 2011
CL203
GLK Class 2007 - 2012
X204
Suitable
for the following radio or navigation
systems:
