Specifications!

Key Features

• DAB+ Digital radio, analog FM radio with RDS functionality and AM radio reception.
• Bluetooth technology for hands-free calls and music streaming.
• Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
• Use your smartphone like a wireless remote control with the KENWOOD Remote app.
• Front AUX input & Illuminated USB with dust cover
• MP3 / WMA / AAC / WAV / FLAC music file playback
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• Wide 1 line LCD display with high contrast, wide viewing angle & white LED backlight.
• Menu language in English(default), Russian, Spanish or French.
• Short body (100mm) for easy installation

General Features

• DIN Size 1 DIN
• Detachable Faceplate
• Key Illumination Red LED
• Rotary Encoder & Control Knob
• Dual Accent Key Handsfree & Audio Streaming
• Back-up Memory Menu Settings
• Touch Sensor Tone
• Digital Clock (24H)
• Clock display when power-off default off
• All-off Select (20/40/60 minutes)
• Built-in Connector Mitsumi, 16 pin
• ISO connector Mitsumi to ISO cable
• Bluetooth unit built-in
• USB interface x 1
• Firmware upgreadable
• Mechless receiver
• Short body

Display Features

• Display Type Liquid Crystal Display (LCD)
• Display Layout 1 line 13 Segments x 13 Digit
• Vertical Aligment Liquid Crystal Display
• Display Illumination White (LED)
• Dimmer Control Manual / Set by Timer
• Brightness control 0 - 31 steps
• Demo Mode
• Menu text in selectable language English(default) / Spanish / French / Russian
• TAG Language Display English, Spanish, Russian & Greek

Cosmetics Features

• Front/edge Black Injection
• Dress plate Black Injection
• Preset key finish Black Injection
• Escutcheon finish Black Injection
• Triangle Illumination Red LED
• Front terminals dust cover
• Key illumination Red LED
• Illuminated front USB port Red LED
• Display illumination White LED
• Brightness Control (Key) 0 - 31 step
• Brightness Control (Display) 0 - 31 step
• Dimmer Control (Key) Manual / Set by Timer
• Dimmer Control (Display) Manual / Set by Timer

Tuner Features

• Station Select Manual / Preset
• Tuner preset/recall key
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM) 6 presets
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek (Service, Ensemble & Component)
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 6 ch * 3 bank presets,
• Service list by alphabet order
• Preset list
• Alphabet Search
• Related service
• Audio interrupt standby by PTY
• Audio interrupt standby by announcement
• DAB-RDS integrated TI
• Traffic Information
• DAB priority
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Soft linking
• Antenna power supply on/off switch
• DAB antenna included SMB terminal

Playable Audio File

• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

USB Features

• USB terminal Front with dust cover
• USB Type USB 1.1/USB 2.0 Full Speed
• Drive Change
• WMA (Windows Media File) playback
• WAV (Waveform Audio Format) playback
• FLAC (Free Lossless Audio Codec) playback
• Repeat / Random Play
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

Audio Features

• Maximum Output Power 50W x 4
• MOSFET Power IC
• Auxiliary input Front, Mini-jack
• Pre-out 1 RCA
• Pre-out Output Level 2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Balance/Fader/Loudness Control
• Loudness Control Off / LV1/ LV2
• Bass Boost Circuit Off/+1/+2/+3/+4/+5
• Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low- & High-pass Filter
• Speaker Size Control
• Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ
• Sound Elevation

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 5 phones
• Hands Free Profile with High Sound Quality HFP V1.7.1
• 2 phones fulltime connection
• High Quality Audio Streaming SBC
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Easy pairing function
• Android automatic pairing via USB
• KENWOOD Remote App Ready Android only, available in Play store
• KENWOOD Music Mix Support
• Private mode
• Interrupt call request
• Alphabet Search (Phonebook)
• Voice Control
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator
• High-quality noise canceling microphone Included (rear wired)
• Bluetooth firmware upgradeable Included in system updates
• * depends on phone model/make & Kenwood unit

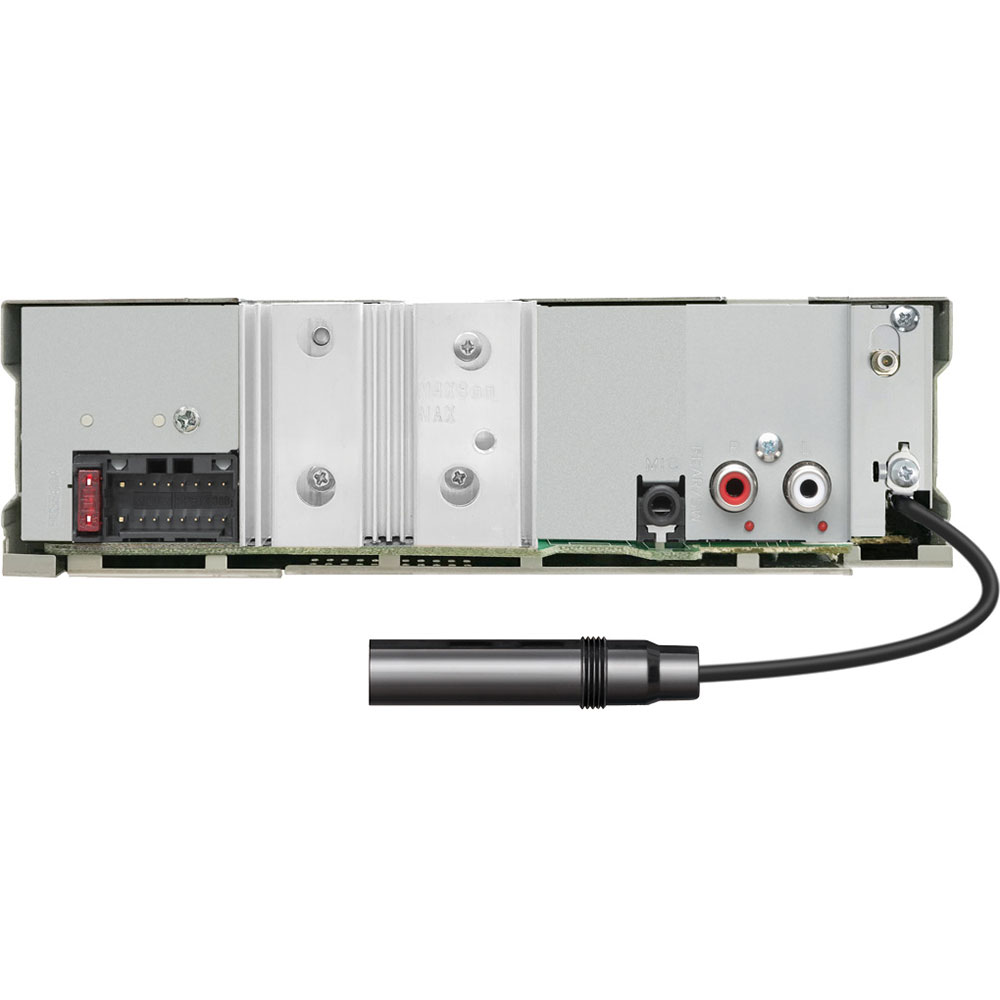

Connectivity

• Front USB & AUX Input
• OEM Wired Remote Control ready Optional interface needed
• DC-Cord    NEW Mitsumi to ISO
• Power Control (P.CON) wires
• 2-way (Tel/Navi) mute wire
• FM Antenna Input
• DAB Aerial input  SMB connector
• External microphone input 3,5mm mini-jack
