Navin NAVconnect RC-MIB3-LT65

Γράψτε μια κριτική και μοιραστείτε τις σκέψεις σας με τα άλλα μέλη.
Δεν υπάρχουν κριτικές για το προϊόν.

Quick Overview

Rear & Front camera interface VAG MIB3 Composition radio 6.5 (all-in one)
299,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 5-7 Ημέρες

Περιγραφή

New Page 1
General

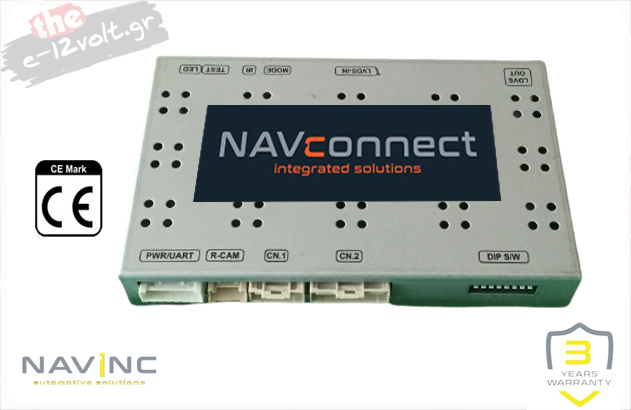

The NavInc NAVconnect interfaces allow for connecting video sources to the original Volkswagen Composition Radio head-unit (6.5").
The interface is equipped with various options such as; 1* Front camera input - 1* Rear camera input & LVDS input

Example video


Features
- 1x Rear camera input
- 1x Front camera input (with auto switch OFF)
- 1x LVDS input (to connect APPplay & NAVplay)
- Adjustubele parking lines via OSD menu
- OEM steering wheel button support
- 3 Year warranty & Support


EXCLUSIVE INTERFACE FEATURES


Features:

- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- OSD menu


OEM STEERING WHEEL

Under constrution


CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.


Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec


NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION

The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility!

Loading…..

Specifications

Head-unit          MIB3  –  6.5"
Rear camera input Yes
Front camera input Yes
RGB input No
LVDS input Yes
HDMI input No
AV input No
AV output No
Activation OEM & Trigger
Open head-uni Yes
CVBS signal NTSC
Guidelines Yes
iDrv No
PiP No
iPAS No
Rear select Lamp
Touch support No
Coding needed No
Voltage supply: 12V DC
Voltage-operating capacity: 10,5 – 18 V
Standby current: >1 mA
Operating current:          60mA
Power input:     0,72 W
Weight:               750g
Dimensions W x H x D:  100 x 10 x 50 mm
CE mark: Yes

Παρατηρήσεις

New Page 2

Συμβατό με τα παρακάτω οχήματα

 VW Caddy

Παρατηρήσεις



Volkswagen with MIB3 – Composition Radio (65”)

Περιλαμβάνει

Package:
  1. Power cable (HPOWER0260 K): 1x
  2. Sub-board 6.5 (QCPASS1732): 1x
  3. LVDS sub-board cable (HLVDSC0072) 1x
  4. Extend board (QCPASS1725): 1x
  5. Interface main (QCPASS1552): 1x
  6. FFC cable 60P (FFCBAL0110): 2x
  7. FFC extend cable 30P (FFCBAL0098): 1x
  8. Remote (REMOTE0001): 1x
  9. IR eye (HIRCAB0002) 1x
  10. Interface module: 1x
  11. Manual: 1x
  12. Service instructions: 1x



Option

  1. UART cable (HTOUCH0015): 1x

Πληροφορίες

New Page 2
CAR
This kit is compatible with the following models:

Volkswagen with MIB3 – Composition Radio (65”)


Note:
- We recommend that the installation will be performed by a qualified specialist

AUDIO OUTPUT The interface inserts ONLY video signals into the infotainment.
CVBS Only compatible with NTSC sources.
LVDS Compatible with APPplay or NAVplay
SCREEN Interface is compatible with (6.5") MIB3 Compositio Radio monitors
FRONT CAMERA The front camera input will automatically switch after leaving the reverse gear.

You can set the display time in seconds via the OSD menu (1-15 sec).
OEM REAR CAMERA x
GUIDELINES Static lines are available via the interface OSD menu
iPAS iPAS option is not available (moveable grid lines)
PIP PiP option is not available for original parking sensor overlay  (Picture in Picture)
REAR SELECT CAMERA INPUT No CAN-BUS connection, use the 12V reverse detection wire (grey wire)
INSTALLATION We recommend that the installation will be performed by a qualified specialist
NOTE Must open the head-unit to install sub-board
