Navinc NAVmusic BT3-BMW-CxC

Γράψτε μια κριτική και μοιραστείτε τις σκέψεις σας με τα άλλα μέλη.
Δεν υπάρχουν κριτικές για το προϊόν.

Quick Overview

BMW & Mini iDrive CCC & CIC Bluetooth Carkit interface (BT/USB/SD/AUX)
259,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 5-7 Ημέρες

Περιγραφή

The Bluetooth car kit interface simulates the CD-changer of BMW/MINI via Fiber Optical system (MOST). Due to the interface it is possible to control the telephone through the original radio or navigation system and the steering wheel control buttons of the car. The address book and telephone numbers will be displayed on the radio/navigation display. The car kit is equipped with the latest generation Bluetooth chipset which enables the most modern telephones to connect through Bluetooth with the original system.
Besides the Bluetooth car kit it has also the possibility to play music via bluetooth streaming, USB, SD-card and AUX.


Features
- Carkit hands-free function via original system
- Phone book support (see table)
- Steering wheel button support
- iD3 tag support (see table)
- Bluetooth Audio streaming support
- USB support (MP3, WAV & WMA)
- SD-card support (MP3 & WMA)
- App audio support (music & navigation)
- Easy menu for music & menu browsing
- Phone charging via USB (max 300mA)
- Support control functions like; PLAY, PAUSE, NEXT, PREV, FF, REW



EXCLUSIVE INTERFACE FEATURES


Vehicle Integration:
- Controls via the original steering wheel control buttons
- Controls via the iDrive system
- Navigate through phone book via iDrive and steering wheel control buttons
- Accept and reject incoming calls and terminate calls via iDrive and steering wheel control button
- Display of conversation on navigation display
- Automatic mute switch/support
- Audio of conversations via the original audio system


Telephone:
- Address book synchronization
- Access to Telephone lists
- Search for contact via A-Z search function
- Menu missed calls
- Menu repeat numbers
- Menu received calls
- Menu active dial list
- Menu address book

Media:
- A2DP audio streaming via Bluetooth
- AVRCP control of the telephone via the original buttons of the iDrive system
- USB support (up to 32GB)
- SD-card support (up to 32GB)
- AUX input via 3.5mm jack


NOTES

- We recommend that the installation will be performed by a qualified specialist
- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"

Compatibility!

Συμβατό με τα παρακάτω οχήματα
BMW | Mini
Συμβατό με τα παρακάτω οχήματα BMW
    1 serie (E81/E82/E87/E88)
    2004-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    Radio Professional/iDrive MASK/iDrive CCC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book

  • P&P cable kit


    3 serie (E90/E91/E92/E93)
    2005-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    Radio Professional/iDrive MASK/iDrive CCC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book

  • P&P cable kit


    5 serie (E60/E61)
    2003-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    Radio Professional/iDrive MASK/iDrive CCC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book

  • P&P cable kit





    6 serie (E63/E64)
    2004-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    Radio Professional/iDrive MASK/iDrive CCC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book

  • P&P cable kit


    X5 serie (E70)
    2007-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CCC Business & Professional

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit


    X6 serie (E71)
    2008-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CCC Business & Professional

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit


    1 serie (E81 E82 E87 E88)
    2009-2011
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CiC & Radio Professional

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit





    3 serie (E90 E91 E92 E93)
    2009-2011
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CiC & Radio Professional

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit


    5 serie (E60 E61)
    2009-2010
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CiC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit


    5 serie (F10 F11)
    2009-2012
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    TESTING

  • Notes
    TESTING

  • P&P cable kit







    5 serie GT (F07)
    2009-2012
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    TESTING

  • Notes
    TESTING

  • P&P cable kit







    6 serie (E63)
    2009-2011
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CiC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit


    6 serie (F12 F13)
    2011-2012
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    TESTING

  • Notes
    TESTING

  • P&P cable kit







    7-serie (F01 F02)
    2009-2012
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    TESTING

  • Notes
    TESTING

  • P&P cable kit







    X1 serie (E84)
    2009-2014
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CiC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit


    X5 serie (E70)
    2009-2013
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    TESTING

  • Notes
    TESTING

  • P&P cable kit







    X6 serie (X70)
    2009-2015
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    TESTING

  • Notes
    TESTING

  • P&P cable kit







    Z4 serie (E89)
    2009-20..
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    iDrive CiC

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit






Επιστροφή στην Αρχή

Συμβατό με τα παρακάτω οχήματα Mini

    Cooper (R56)
    2009-2016
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    Radio BOOST with 2x rotary knobs

  • Notes
    OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book

  • P&P cable kit
Επιστροφή στην Αρχή

Specification

Voltage supply:

12V DC (B+)

Operation:

12V - 160mA

Operating Temperature:

-30°C to +60°C

Storing Temperature:

-40°C to +80°C

Microphone cable lengt:

270cm

Power cable lengt:

100cm

MOST cable lengt:

1x 18cm - 2x 90cm

Sizes:

100mm x 76mm x 23mm

Shockproof

Yes

CE:

Yes

FFC

Yes

Παρατηρήσεις

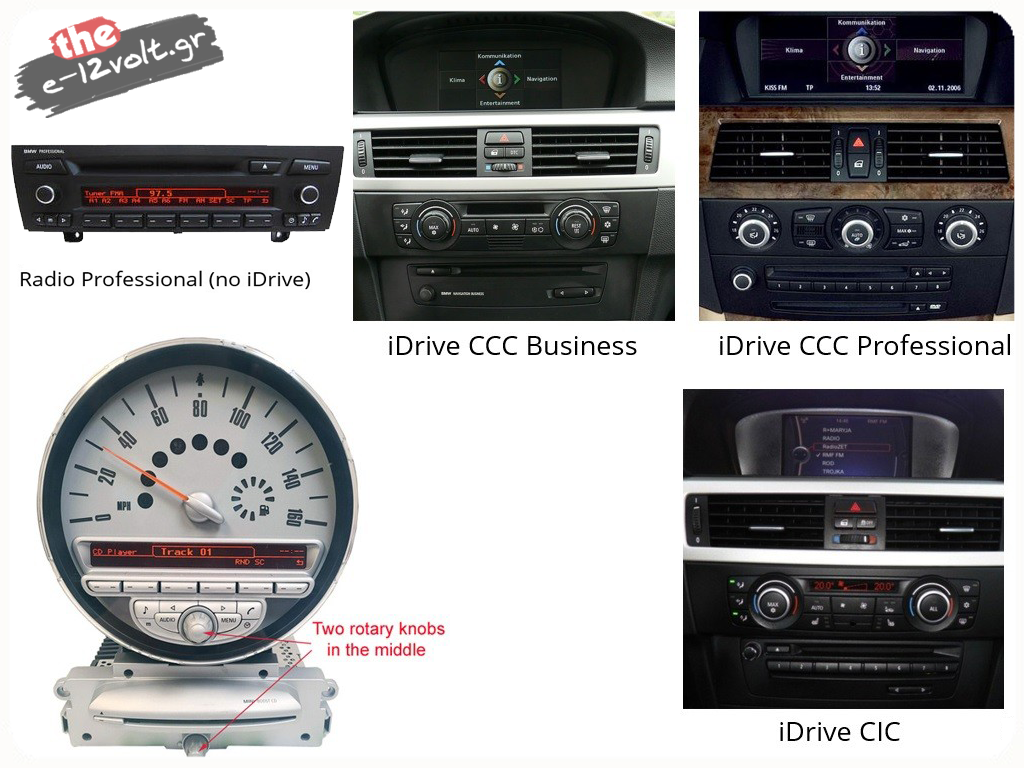

New Page 3
Head-unit
Suitable for the following radio- navigation system:

Radio system

Notes

Radio Professional (without iDrive)

Must be with fiber optical connection

Not support phone book list

Support ID3 tag

iDrive Navigation Business CCC

Support phone book list & ID3 tag

iDrive Navigation Professional CCC

Support phone book list & ID3 tag

iDrive Navigation Business CIC

Support phone book list & ID3 tag

iDrive Navigation Professional CIC

Support phone book list & ID3 tag

iDrive Navigation M-ASK

Not support phone book list

Support ID3 tag

iDrive Navigation M-ASK II

Not support phone book list

Radio Boost (double rotary nob only)

Not support phone book list

Support ID3 tag





REQUIREMENT

OEM CD CHANGER

Must be removed when installed (use a loop connector - optional)

OEM BT CARKIT

Put dipswitch 4 to the ON position, when installed

OEM MOST

The Optical input of the head-unit must be activated (optical input is activated with following OEM options: BT-carkit/CD changer/TV tuner/Amplifier)

SIMULATION

Interface simulates OEM CD changer

USB

Support USB stick version 1.1 – 2.0 (max 32GB) – MP3 & WMA files only – max 5 folders with 999 music files – support iD3 tag

SD CARD

Support micro SD card (max 32GB) – MP3, WAV & WMA files only – max 5 folders with 999 music files – support iD3 tag

BLUETOOTH

Support audio streaming – support iD3 tag

INSTALLATION

We recommend that the installation will be performed by a qualified specialist

EXTRA NOTE

Coding needed when OEM CD changer is not installed.

Περιλαμβάνει

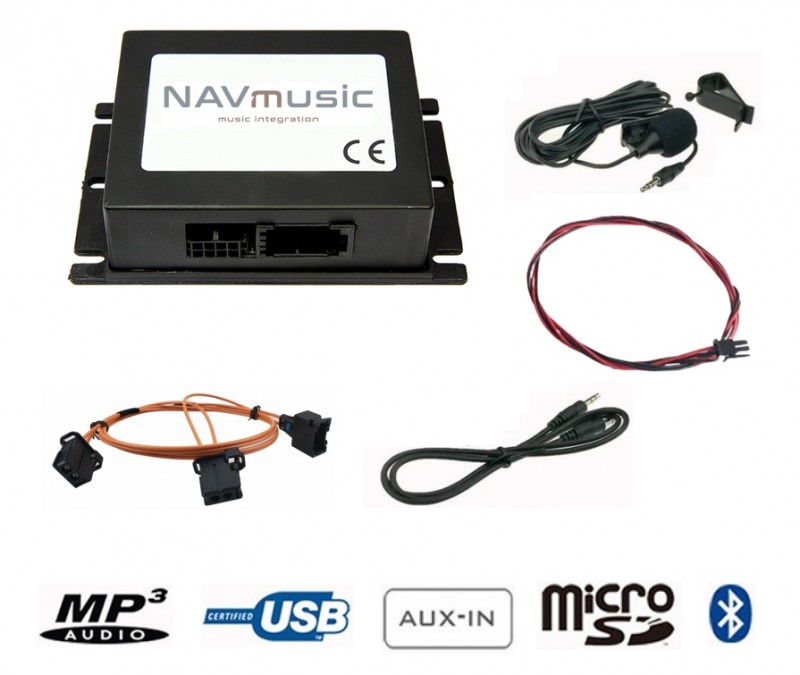

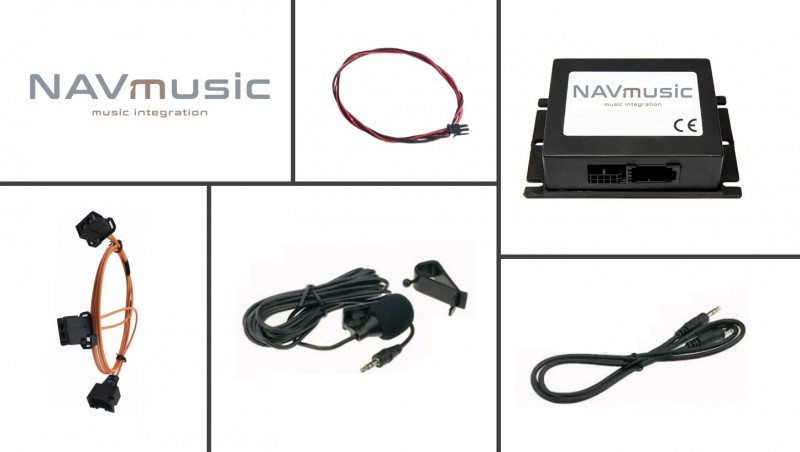

The following is provided in the set:

BT3-MB-NTG


Package:

  1. Main BMW module: 1x
  2. Optical Y-cable: 1x
  3. Power cable: 1x
  4. Jack to Jack cable - 3.5mm: 1x
  5. Microphone with bracket: 1x
  6. Installation instructions: 1x
