Quick Overview

Landrover_Jaguar Bluetooth Carkit interface (BT/USB/SD/AUX)
259,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 5-7 Ημέρες

Περιγραφή

The Bluetooth car kit interface simulates the CD-changer of Landrover & Jaguar via Fiber Optical system (MOST). Due to the interface it is possible to control the telephone through the original radio or navigation system and the steering wheel control buttons of the car. The car kit is equipped with the latest generation Bluetooth chipset which enables the most modern telephones to connect through Bluetooth with the original system.
Besides the Bluetooth car kit it has also the possibility to play music via bluetooth streaming, USB, SD-card and AUX.


Features
- Carkit hands-free function via original system
- Steering wheel button support
- iD3 tag support (see table)
- Bluetooth Audio streaming support
- USB support (MP3 & WMA)
- SD-card support (MP3 & WMA)
- App audio support (music & navigation)
- Easy menu for music & menu browsing
- Phone charging via USB (max 300mA)
-Support control functions like; PLAY, PAUSE, NEXT, PREV, FF, REW



EXCLUSIVE INTERFACE FEATURES

Vehicle Integration:
- Controls via the original steering wheel control buttons
- Controls via the radio system
- Accept and reject incoming calls and terminate calls via Comand and steering wheel control button
- Display of conversation on navigation display
- Volume adjustment via steering wheel control buttons and radio system
- Automatic mute switch/support
- Audio of conversations via the original audio system


Media:
- A2DP audio streaming via Bluetooth
- AVRCP control of the telephone via the original buttons of the Comand system**
- USB support (up to 32GB)
- SD-card support (up to 32GB)
- AUX input via 3.5mm jack


NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"

Compatibility!

Συμβατό με τα παρακάτω οχήματα
Jaguar | LandRover
Συμβατό με τα παρακάτω οχήματα Jaguar

    XF (X250)
    2008-2011
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    FoMoco 6CDX Audio system only

  • Notes
    Only compatible combined with OEM CD changer

  • P&P cable kit


    XK (X150)
    2008-2015
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    FoMoco 6CDX Audio system only

  • Notes
    Only compatible combined with OEM CD changer

  • P&P cable kit




Επιστροφή στην Αρχή

Συμβατό με τα παρακάτω οχήματα LandRover

    Range Rover Sports
    2005-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    FoMoco 6CDX Audio system only

  • Notes
    Only compatible combined with OEM CD changer

  • P&P cable kit


    Range Rover
    2005-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    FoMoco 6CDX Audio system only

  • Notes
    Only compatible combined with OEM CD changer

  • P&P cable kit


    Vogue
    2005-2009
  • SW Commands

  • Bluetooth carkit

  • Bluetooth streaming

  • Phone book

  • ID3-tag

  • USB input

  • SD-input

  • AUX input

  • iPod input

  • Head-unit
    FoMoco 6CDX Audio system only

  • Notes
    Only compatible combined with OEM CD changer

  • P&P cable kit
Επιστροφή στην Αρχή

Specification

Voltage supply:

12V DC (B+)

Operation:

12V - 160mA

Operating Temperature:

-30°C to +60°C

Storing Temperature:

-40°C to +80°C

Microphone cable lengt:

270cm

Power cable lengt:

100cm

MOST cable lengt:

1x 18cm - 2x 90cm

Sizes:

100mm x 76mm x 23mm

Shockproof

Yes

CE:

Yes

FFC

Yes

Παρατηρήσεις

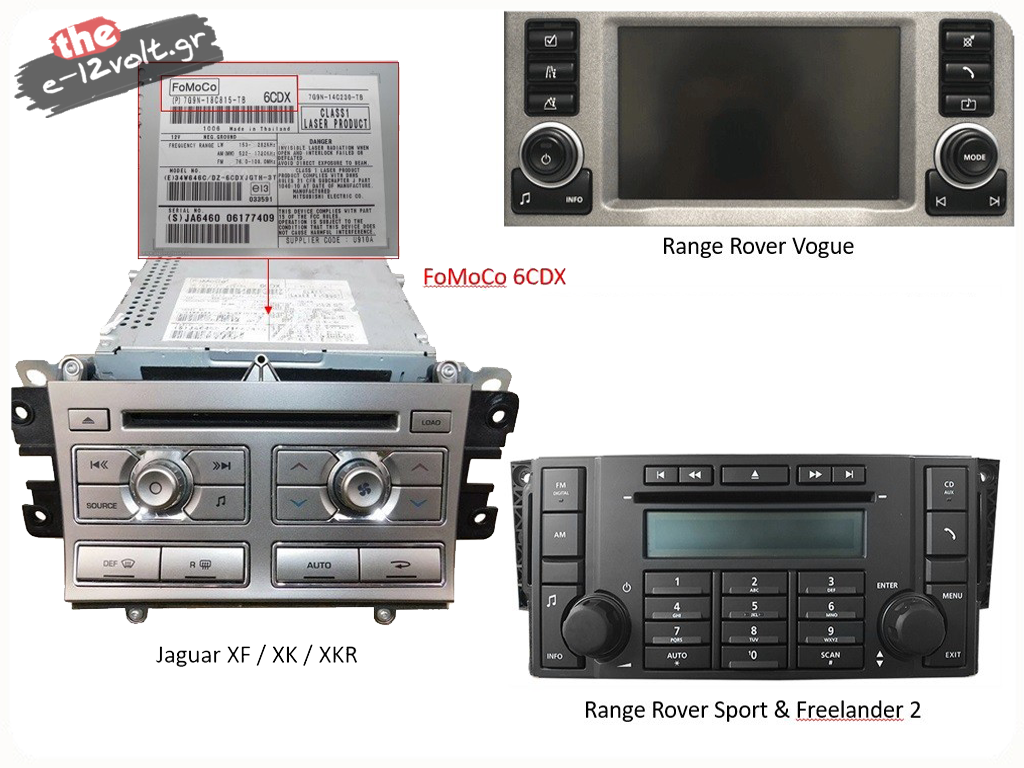

Head-unit
Suitable for the following radio- navigation system:


Radio system

Radio

Notes

XF_XK_XKR

With FoMoCo 6CDX head-unit

Not support phone book list

Support ID3 tag

Retain OEM 6 CD player

Freelander

With 6 CD changer from factory



Not support phone book list

Support ID3 tag

Retain OEM 6 CD player

Range Rover L322

With 6 CD changer from factory

Not support phone book list

Support ID3 tag

Retain OEM 6 CD player

Range Rover Sport

With 6 CD changer from factory

Not support phone book list

Support ID3 tag

Retain OEM 6 CD player


REQUIREMENT

OEM CD CHANGER

Only compatible with factory 6 cd changer

OEM NAVIGATION

Compatible with OEM navigation system

OEM MOST

The fiber optical input is always activated, coding is not needed

SIMULATION

Interface simulates OEM CD changer

USB

Support USB stick version 1.1 – 2.0 (max 32GB) – MP3 & WMA files only – max 5 folders with 99 music files – not support iD3 tag

SD CARD

Support micro SD card (max 32GB) – MP3 & WMA files only – max 5 folders with 99 music files – not support iD3 tag

BLUETOOTH

Support audio streaming – support iD3 tag

PHONE BOOK

Does not support phonebook

INSTALLATION

We recommend that the installation will be performed by a qualified specialist

EXTRA NOTE

The carkit function only work in CD changer level

Περιλαμβάνει

The following is provided in the set:

BT3-LR-GVIF

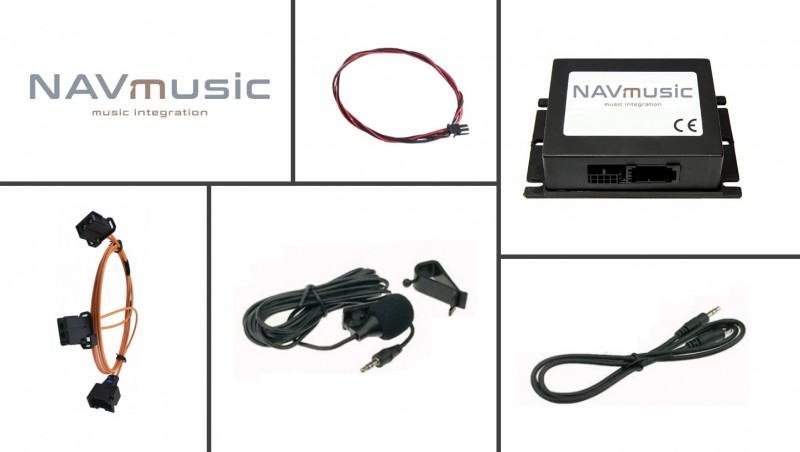

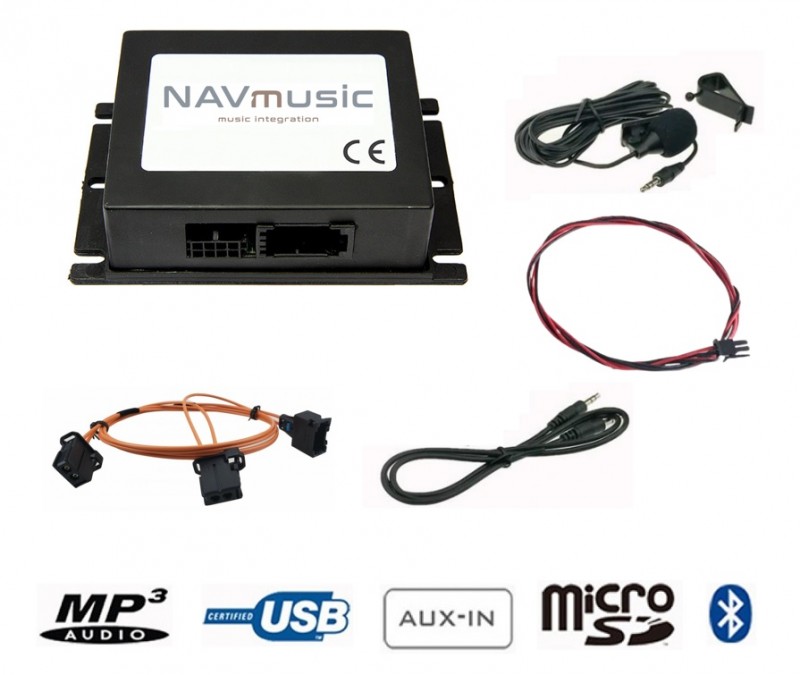

Package:
  1. Main LR module: 1x
  2. Optical Y-cable: 1x
  3. Power cable: 1x
  4. Jack to Jack cable - 3.5mm: 1x
  5. Microphone with bracket: 1x
  6. Installation instructions: 1x
