Navinc RC-FIAT-DUC

Γράψτε μια κριτική και μοιραστείτε τις σκέψεις σας με τα άλλα μέλη.
Δεν υπάρχουν κριτικές για το προϊόν.

Quick Overview

Rear camera interface Fiat Ducato Uconnect 7" (NTSC)
299,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 5-7 Ημέρες

Περιγραφή

DESCRIPTION

General

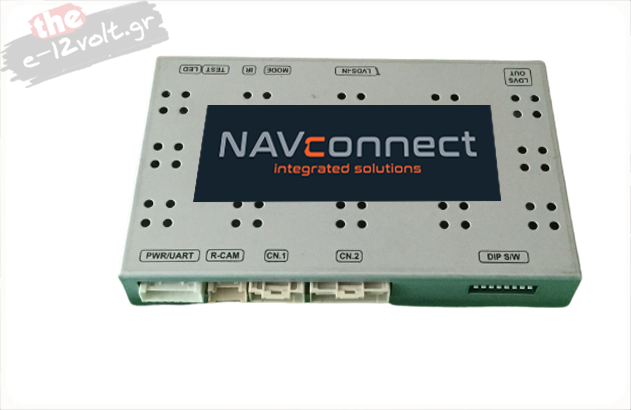

The NavInc NAVconnect interfaces allow for connecting video sources to the original Fiat Ducato Uconnect system (7").
The interface is equipped with various options such as; 1* Front camera input & 1* Rear camera input.

Example video





Features
- 1x Rear camera input
- 1x Front camera input (with auto switch OFF)
- Adjustubele parking lines via OSD menu
- 3 Year warranty & Support


EXCLUSIVE INTERFACE FEATURES
Features:
- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- OSD menu


CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.


Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec

NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION

The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility!

Συμβατό με τα παρακάτω οχήματα
Fiat|

    Ducato
    2019-20..
  • Coding needed
    No

  • Head-unit
    Uconnect 7"

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Trigger

  • Signal
    LVDS

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp

  • Touch support
    No

  • Notes


  • P&P cable kit

Επιστροφή στην Αρχή

Παρατηρήσεις

Συμβατό με τα παρακάτω οχήματα της Fiat

Ducato 2019-

Doblo 2020-

Panda 2019-

Που διαθέτουν τα παρακάτω Εργοστασιακά Συστήματα

- Uconnect 7"

Περιλαμβάνει

Package:

Power cable (HARETC0260 K): 1x

MAIN-board (QCPASS1499): 1x

EXT LCD B/D (QCPASS1505): 1x

EXT B/D (QCPASS1500): 1x

FFC cable 40P – 180mm (FFCBAL0099): 1x

FFC Cable 40P – 100mm (FFCBAL0100): 1x

Bracket (PRESET0953): 1x

LVDS cable (HLVDSC0006): 1x

Remote (REMOTE0001): 1x

IR eye (HIRCAB0002) 1x

Interface module: 1x

Manual: 1x

Service instructions: 1x

Πληροφορίες

Συμβατό με τα παρακάτω οχήματα

Fiat
Ducato 2019> - Uconnect 7"


 Παρατηρήσεις

- We recommend that the installation will be performed by a qualified specialist

AUDIO OUTPUT

The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.

CVBS

Only compatible with NTSC sources.

LVDS

Not supported

SCREEN

Interface is compatible with 7.0” monitors

FRONT CAMERA

The front camera input will automatically switch after leaving the reverse gear.

You can set the display time in seconds via the OSD menu (1-15 sec).

OEM REAR CAMERA

The interface does not switch back automatically to the OEM rear camera input when the reverse gear is engaged.

GUIDELINES

Static lines are available via the interface OSD menu

iPAS

iPAS option is NOT available (moveable grid lines)

PIP

PiP option is NOT available for original parking sensor overlay (Picture in Picture)

REAR SELECT CAMERA INPUT

Use the 12V reverse detection wire (grey wire)

INSTALLATION

We recommend that the installation will be performed by a qualified specialist

NOTE

Head-unit must be opened to install the interface sub-board
