Quick Overview

Multimedia video interface Iveco Daily 2019 Uconnect (7")
459,00€

αγόρασε το και με :

Χαρακτηριστικά:

Χρόνος αποστολής: 10+ Ημέρες

Περιγραφή

DESCRIPTION

General
The NavInc NAVconnect interfaces allow for connecting video sources to the original Iveco Daily 2019 Uconnect 7" screen.
The interface is equipped with various options such as; 1* RGB input, 1* Video input, 1* Front camera input, 1* Rear camera input & 1*LVDS input.

Example video

Features
- 1x RGB / LVDS input (to connectd NAVplay Android)
- 1x Video input
- 1x Rear camera input
- 1x Front camera input (with auto switch OFF)
- Original touchscreen support for NAVplay Android
- Picture while driving
- 2 Year warranty & Support


EXCLUSIVE INTERFACE FEATURES
Features:
- AV input
- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- OSD menu


CAMERA FEATURES

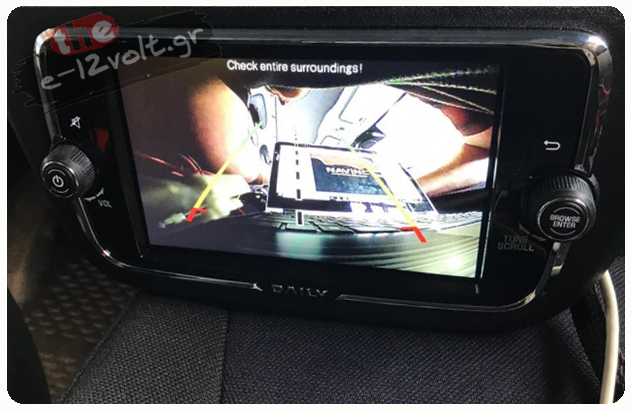

Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.


Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
0 - 30 seconds


NOTES
- It is essential to have an Aux-in
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION
The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility!

Συμβατό με τα παρακάτω οχήματα
Inveco |

    Daily
    2019-20..
  • Head-unit
    Uconect (7")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch

  • Signal
    FFC

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp

  • Touch support
    OEM

  • Notes


  • P&P cable kit


    S-way (truck)
    2019-20..
  • Head-unit
    Uconect (7")

  • Rear camera input

  • Front camera input

  • RGB input

  • LVDS input

  • HDMI input

  • A/V input

  • A/V output

  • Activation
    Switch

  • Signal
    FFC

  • Open head-unit

  • CVBS signal
    NTSC

  • Guide lines

  • I-DRV

  • Picture in Picture (PiP)

  • iPAS lines

  • R-gear select
    Lamp

  • Touch support
    OEM

  • Notes


  • P&P cable kit

Επιστροφή στην Αρχή

Package

The following is provided in the set:

IF-FIAT-NISPV

Package:

  1. Power cable: 1x
  2. LVDS cable: 1x
  3. Sub-board big (Rev 02): 1x
  4. LVDS extension board: 1x
  5. FFC cable (40*110*0.5*P): 1x
  6. FFC cable (30*150*1.0*P7): 1x
  7. Button print: 1x
  8. Mode button: 1x

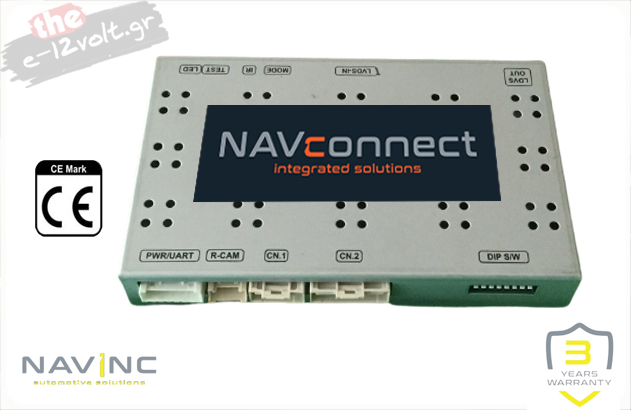

  9. Interface module: 1x
  10. Installation instructions: 1x



Optional

  1. RGB input cable (7pins): 1x
  2. Touch cable: 1x


Specifications

Software version: IVEC DAIL 2019
Voltage supply: 12V DC
Voltage-operating capacity:       8  – 24 VDC
Standby current: 1 mA
Operating current:          12 Watt - MAX
Power input:     0,7 W
Temperature range: - 30°C up to + 80°C
Weight:               350g
Dimensions W x H x D:  159 x 83 x 22 mm
CE-mark Yes

Παρατηρήσεις

CAR
This kit is compatible with the following models:

Iveco
Daily  2019-20.. Uconect (7")

Note:
- It is essential to have an Aux-in when using multimedia source
- We recommend that the installation will be performed by a qualified specialist
- If you have Original Carkit & Audio streaming option via bluetooth, AUX input is not needed

REQUIREMENT
AUDIO
The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.
CVBS
Only compatible with NTSC sources.
GUIDELINES
Static lines are available via the interface OSD menu
OEM REAR CAMERA
The interface does not switch back automatically to the OEM rear camera input when the reverse gear is engaged
FRONT CAMERA
The front camera input will automatically switch after leaving the reverse gear.
You can set the display time in seconds via the OSD menu (1-30 sec).
It is also possible to select the FRONT camera input manually

SCREEN
Interface is compatible with 7” monitors
INSTALLER
We recommend that the installation will be performed by a qualified specialist
