Upgrade your Mercedes with CARPLAY to your
existing system. You can run apps from your iPhone Via CarPlay without
touching your iPhone. You can control this Carplay kit via the Mercedes
Comand controller and via voice control (Siri).
- Carplay control via
- Carplay control via voice (Siri)
- Carplay navigation apps like; Google maps, TomTom & Waze
- Carplay music apps like; Spotify, Podcast, Music
- Making phone calls and listening to your messengers
- Rear camera input with iPAS support
- AV & RGB input
- HDMI input
- Steering wheel button support
- Comand button support
- Picture while driving
EXCLUSIVE CAR FEATURES
- 1* HDMI input
- 1* NAVplay input
- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- Intelligent Park Assist System (IPAS) - moveable parking lines
Activation via OEM
Activation NAVplay via
original "RETURN" button
Activation via OEM steering wheel
Activation NAVplay via
original steering wheel "RETURN" button

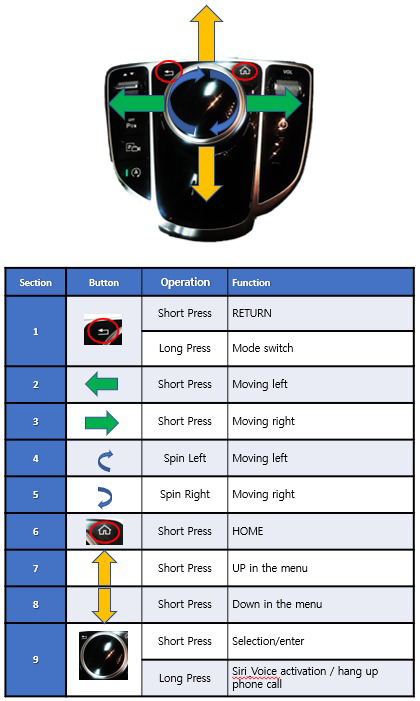

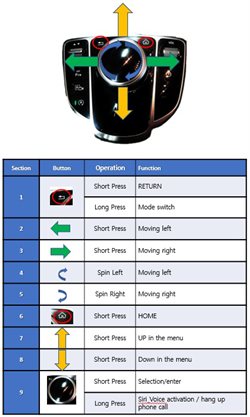

Long press the Comand “RETURN” button to
switch and access the Carplay menu.
With the Comand controller you can select the app or activate Siri.
Via the camera input of
the interface an aftermarket camera system can be connected to the
navigation system. The camera image will be displayed automatically on
the screen when the car is put in the reverse gear. The camera input
knows 2 views:
1: Camera with Picture in Picture of the Parking assist
2: Full camera view
In the camera image on
screen parking guidelines can be displayed. This makes it much easier to
determine the distance to the object you are driving towards. The guidelines
are adjustable horizontal as well as vertical so the lines can be adjusted
to the car.
Intelligent Park Assist System (IPAS)
The interface have also the
Intelligent Park Assist System (iPAS). With this function the guidelines
will respond on the steering wheel position. The guide lines are adjustable
horizontal and vertical via the interface OSD menu.
Front camera input
The front camera input will be activated after
leaving the reverse gear.
The camera will switch OFF automatically after 10 km/h or when you press
the NAVI button.
The interface support original and aftermarket
rear camera input. Including original parking sensor information display,
split screen and full screen mode.

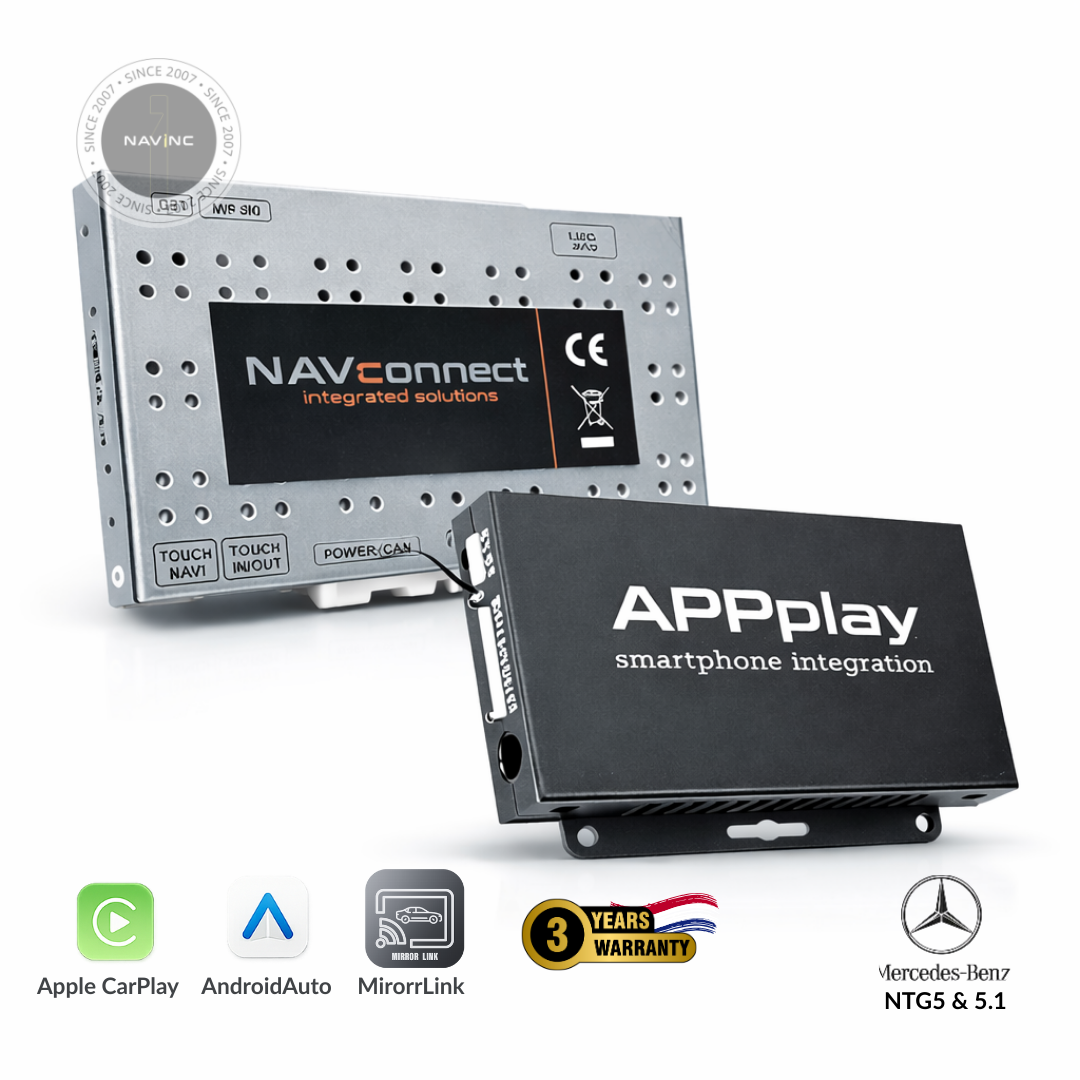

The following is provided in the set:
- Multimedia HDMI interface
NTG5 (IF-MB-NTG5PHV): 1x
- CARplay module: 1x
- Installation- & user
- It is essential to have an
- We recommend that the
installation will be performed by a qualified specialist
The driver ofthe
vehicle should not be inferred from the motion images. In many
countries, watching movies while driving is prohibited. Therefore we
accept no responsibility for material or personal injuries, directly
or indirectly, due to installation of the interface modules.
Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to
replace the navigation system. The NavInc interfaces enable the
possibilities to connect different Audio/Video sources to the
Manufacturers create adjusted software and hardware versions,
options and enhancements which ensures that the compatibility of the
products cannot be guaranteed 100%. Compatibility lists are based on
customer feedback and experiences and will constantly be updated for
optimal customer support.
