Περιγραφή
Τροφοδοτικό μετασχηματιστής είσοδος
DC 8-22V έξοδος
ρυθμιζόμενη από 1V έως 15V

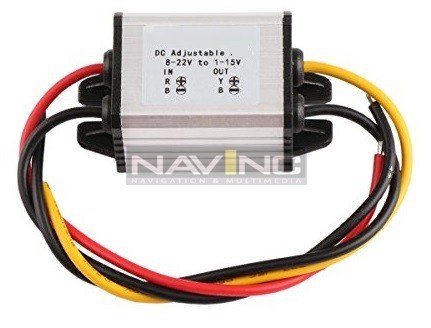

Car power Voltage Regulator. Output voltage can
be changed from 1-15V.
Feature:
-
Dimensions:
34 x 25 x 20mm
-
Input
voltage: DC 8-22V
-
Output voltage:1-15V (adjustable,please
ensure that the input voltage is higher than the output 3V)
-
Output current: 3A Max.(2A,long-term work
does not need to enhance heat dissipation)
-
Conversion
efficiency: up to 96%
-
Static
power consumption: about 12mA
-
Ripple output: About 100mV (when 12V to
5V/3A)
-
Operating temperature: -20 °c to +60 °c (
Industrial grade ), -40 °c to 80 °c (limit)
-
Short
circuit protection
-
Reverse
polarity protection
-
Over-current
protection
-
Over-temperature
protection
-
Shockproof,
moistureproof, dust-proof
wiring:
-
Red: input
+
-
Yellow:
output +
-
Black:
input- / output -
Package includes:
