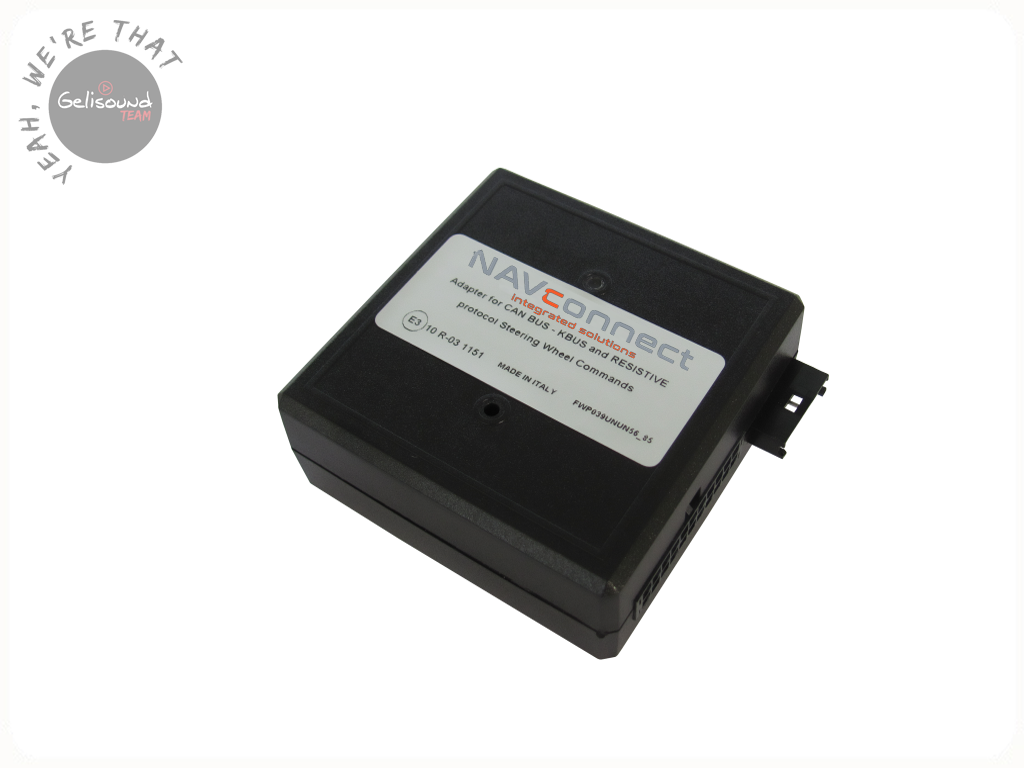

The
interface makes sure the original steering wheel controls
functionality maintains the same in combination with the
right control cable (optional).
The
following functionalities are possible:
Skip songs
Volume
control
Play/Pause
Source
option (switch between FM-AM-CD-iPod-etc.)
Mute
Up / Down
menu buttons
Telephone
answer/deny
For specific
functionalities check tab “Compatibility”.
P&P cables
At the
bottom of the page you can select the following:
- Universal
cable kit
- Plug &
play cable kits
- No cable
kit
CAN-BUS
The
interface has self learning profile selection in car
models with CAN-BUS and K-bus controls.
The
interface reads out the ignition output from the CAN-BUS
or K-bus protocol and converts it to a usable analogue
+12V output signal (maximum 2A). With this signal the
aftermarket radio- or navigation system switches on and
off automatically when the ignition will be switched on
or off.
The
interface reads out the light signal output from the
CAN-BUS or K-bus protocol and converts it to a usable
analogue +12V output signal (maximum 0.04A). With this
signal the aftermarket radio- or navigation system
switches to night view (colours) automatically when the
lights will be switched on.
The
interface reads out the speed pulse signal from the
CAN-BUS or K-bus protocol and converts it to an
usable analogue speed signal (km/h or Miles).
The
interface reads out the reverse gear from the CAN-BUS or
K-bus protocol and converts it to an usable analog +12V
output signal (maximum 0,04A). With this signal the
aftermarket radio- or navigation system switches
automatically to the camera input when the car is
getting into the reverse gear.
The
interface reads out the handbrake signal from the
CAN-BUS or K-bus protocol and converts it to an usable
analogue output signal.
Audio menu recovery
Audio menu
recovery for those cars with SEEK buttons shared between
radio an body computer (like Mercedes).
Phone function
For those
cars having Telephone steering Wheel buttons control to
answer / refuse any call coming from the atermarket radio
hands free Telephone.
Parking sensors
recovery
Some car
models the OEM parking sensors will not work anymore
after removing the original radio. The interface recover
the OEM parking sensors via an optional buzzer.
Some car
models the OEM amplifier will be shut down after removing
the original radio.The interface recover the OEM CAN-BUS
controled amplifier in combination with the aftermarket
radio.
Original car menu
control
To manage
car body computer by steering wheel commands in those cars
which it can be controlled by the OEM radio.
The following is
provided in the set:
- SW
interface
-
Installation- and user manual
- Warranty
- Invoice
Optional:
- (Plug and play) cable adapter (selectable at the bottom of
this page)
- Radio adapter (selectable at the bottom of this page)
-
Parking sensor buzzer
Additional
information:
- Check at
the “compatibility” tab on top of this page if your car
model, radio or navigation system is suitable for this
product.
- At this
tab you will also find information about the support of
steering wheel controls.
- Choose the
right optional Radio-adapter (selectable at the bottom of
this page)
- Choose the
right cable adapter (selectable at the bottom of this page)
-The
interface is CE, FCC and TUV certified
Product specifications:
Voltage: 10
- 16V VDC
Standby
consumption: 0,001 A
Decrease in
Operating: 0,048 A
Temperature
range: - 30°C up to + 80°C
Weight: 42gr
Dimensions:
Width 65mm x Height 65mm x Depth 25mm
